Product Summary
The SDED5-512M-N9 is an Embedded Flash Drive (EFD) designed for mobile handsets and consumer electronics devices. The SDED5-512M-N9 is the new generation of SanDisk’s successful mDOC product family, enabling tens of millions of handsets and other mobile devices since the year 2000. The SDED5-512M-N9 is a hybrid device combining an embedded thin flash controller and standard flash memory. In addition to the high reliability and high system performance offered by the current the SDED5-512M-N9 family of products, the SDED5-512M-N9 offers plug-and-play integration, support for multiple NAND technologies and more features such as advanced power management schemes.
Parametrics
SDED5-512M-N9 absolute maximum ratings: (1)1.8V DC supply voltage, VCC: -0.3 to 2 V; (2)3.3V DC supply voltage, VCC: -0.3 to 4 V; (3)1.8/3.3V DC supply voltage, VCCQ: -0.3 to 4 V; (4)1.8/3.3V DC supply voltage, VCC: -0.3 to 4 V; (5)Maximum duration of applying only part of the power supplies; (6)(some of the power supply ON and the other OFF), T1supply: 500 msec; (7)Input pin voltage, Vin: -0.3 to 3.6 V; (8)Ambient Temperature, OTR: -25 to 85℃; (9)Storage temperature, Tstg: -55 to +125℃.
Features
SDED5-512M-N9 features: (1)Flash management; (2)Bad-block management; (3)Dynamic virtual mapping; (4)Dynamic and static wear-leveling; (5)Power failure management; (6)Implementation of EDC/ECC; (7)Performance optimization.

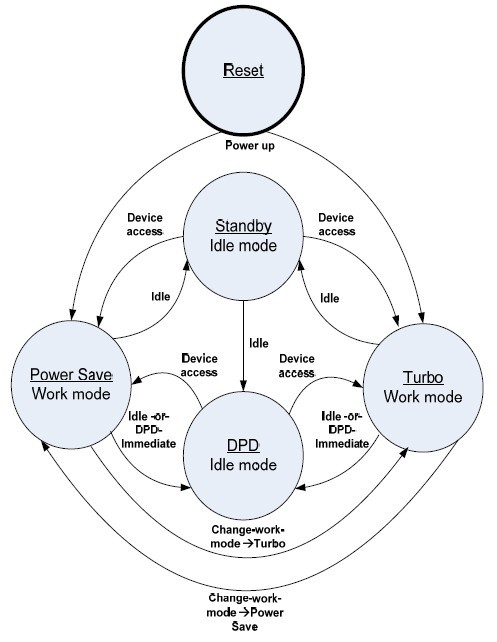

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

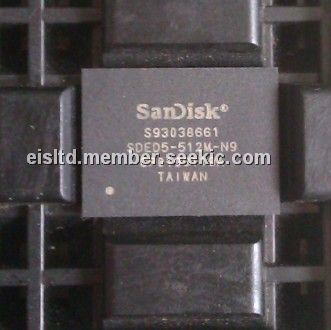

 SDED5-512M-N9T |
|
IC MDOC H3 4GB 115-FBGA |
Data Sheet |
Negotiable |
|
||||
|
SDED5-512M-N9Y |
|
IC MDOC H3 4GB 115-FBGA |
Data Sheet |
Negotiable |
|
||||
