Product Summary
The SN74LS75N is a 4-bit bistable latch. The SN74LS75N is ideally suited for use as temporary storage for binary information between processing units and in put/output or indicator units. Information present at a data (D) input is transferred to the Q output when the enable (C) is high and the Q output will follow the data input as long as the enable remains high. When the enable goes low, the information (that was present at the data input at the time the transition occurred) is retained at the Q output until the enable is permitted to go high. The SN74LS75N features complementary Q and Q outputs from a 4-bit latch, and are available in various 16-pin packages. For higher component density applications, the SN74LS75N 4-bit latch is available in 14-pin flat package.
Parametrics
SN74LS75N absolute maximum ratings: (1)Supply voltage, Vcc: 7V; (2)Input voltage: 5.5V; (3)Interemitter voltage: 5.5V; (4)Operating free-air temperature range: 0℃ to 70℃; (5)Storage temperature range: -65℃ to 150℃.
Features
SN74LS75N features: (1)Supply voltage, Vcc: 4.75 to 5.25V; (2)High-level output current, IQH: -400μA; (3)Low-level output current, IOL: 16mA; (4)Width of enabling pulse, tw: 20ns; (5)Setup time, tsu: 20ns; (6)Hold time, th: 5ns; (7)Operating free-air temperature, TA: 0 to 70℃.

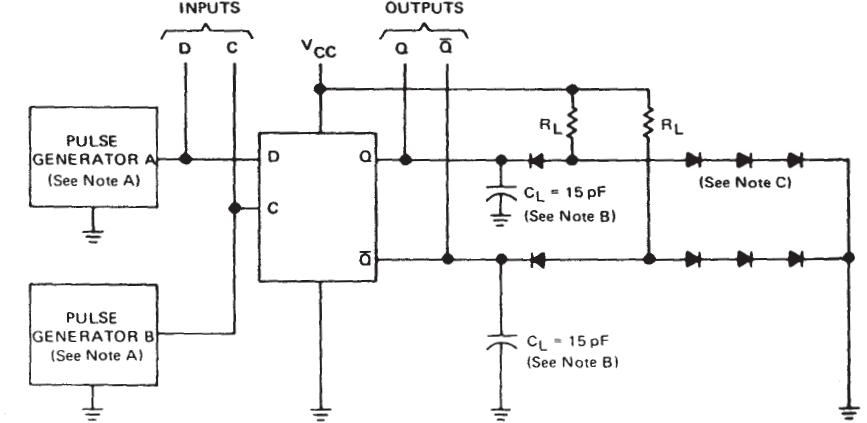

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LS75N |
Texas Instruments |
Latches Quad bistable latch |
Data Sheet |
|
|
||||||||||||
|
SN74LS75NE4 |
Texas Instruments |
Latches Quad bistable latch |
Data Sheet |
|
|
||||||||||||
|
SN74LS75NSRG4 |
Texas Instruments |
Latches Quad bistable latch |
Data Sheet |
|
|
||||||||||||
|
SN74LS75NSRE4 |
Texas Instruments |
Latches Quad bistable latch |
Data Sheet |
|
|
||||||||||||
|
SN74LS75NSR |
Texas Instruments |
Latches Quad bistable latch |
Data Sheet |
|
|
||||||||||||
