Product Summary
The SP706TCN-L is a low power microprocessor supervisory circuit that integrates myriad components involves in discrete solutions which monitor power-supply and battery. It is ideal for +3.0V or +3.3V applications in automotive systems, computers, controllers, and intelligent instruments. The SP706TCN-L is an ideal solution for systems in which critical monitoring of the power supply to the μP and related digital components is demanded.
Parametrics
SP706TCN-L absolute maximum ratings: (1)terminal voltage: -0.3 to 6V; (2)input current: 20mA; (3)output current: 20mA; (4)ESD rating: 2kV; (5)continuous power dissipation: 727mW; (6)storage temperature range: -65 to 160℃; (7)lead temperature: 300℃.
Features
SP706TCN-L features: (1)Built-In Vcc Glitch Immunity; (2)Available in 8-pin PDIP, NSOIC, and SOIC packages; (3)Voltage Monitor for Power Failure or Low Battery Warning; (4)Pin Compatible Enhancement to Industry Standards; (5)WDI Can Be Left Floating, Disabling the Watchdog Function; (6)Debounced TTL/CMOS Manual-Reset Input.

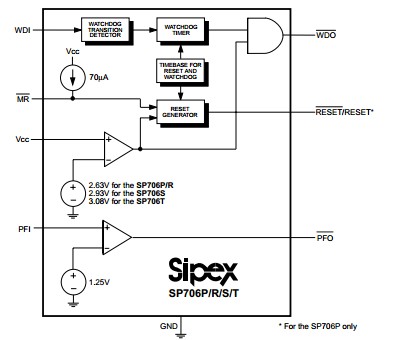

Diagrams
