Product Summary

The SPP24N60C3 is a cool MOS power transistor.

Parametrics

SPP24N60C3 absolute maximum ratings: (1)Continuous drain current, TC = 25℃, ID: 24.3A; TC = 100℃, ID: 15.4A; (2)Pulsed drain current, tp limited by Tjmax, IDpuls: 72.9A; (3)Avalanche energy, single pulse, ID = 8, VDD = 50V, EAS: 780mJ; (4)Avalanche energy, repetitive tAR limited by Tjmax2), ID = 16A, VDD = 50V, EAR: 1mj; (5)Avalanche current, repetitive tAR limited by Tjmax, IAR: 24.3A; (6)Gate source voltage, VGS: ±20 V; (7)Gate source voltage AC (f >1Hz), VGS: ±30V; (8)Power dissipation, TC = 25℃, Ptot: 240W; (9)Operating and storage temperature, Tj, Tstg: -55 to +150℃.

Features

SPP24N60C3 features: (1)New revolutionary high voltage technology; (2)Worldwide best RDS(on) in TO 220; (3)Ultra low gate charge; (4)Periodic avalanche rated; (5)Extreme dv/dt rated; (6)Ultra low effective capacitances; (7)Improved transconductance.

Diagrams

SPP24N60C3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

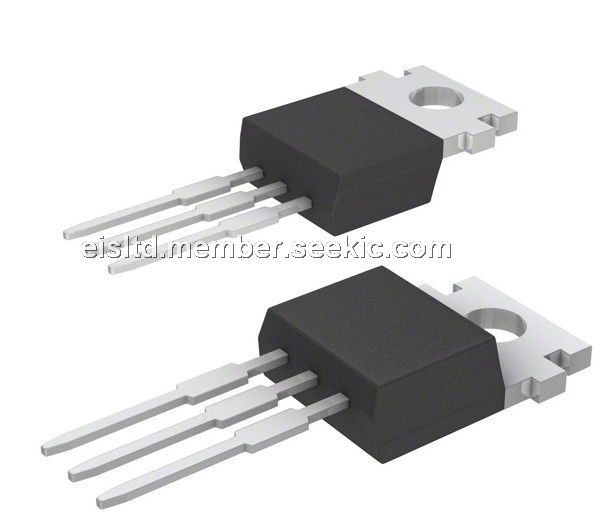

SPP24N60C3
SPP24N60C3
Infineon Technologies
MOSFET COOL MOS N-CH 650V 24.3A
Data Sheet
0-1: $3.13
1-10: $2.51
10-100: $2.29
100-250: $1.85
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPP20N60C2
SPP20N60C2
Infineon Technologies
MOSFET N-CH 650V 20A TO-220AB
Data Sheet
Negotiable
SPP20N60C3
SPP20N60C3
Infineon Technologies
MOSFET COOL MOS N-CH 650V
Data Sheet
0-1: $2.43
1-10: $2.14
10-100: $1.78
100-250: $1.21
SPP20N60CFD
SPP20N60CFD
Infineon Technologies
MOSFET COOL MOS N-CH 650V 20.7A
Data Sheet
0-1: $2.93
1-10: $2.35
10-100: $2.14
100-250: $1.73
SPP20N60S5
SPP20N60S5
Infineon Technologies
MOSFET COOL MOS N-CH 600V 20A
Data Sheet
0-1: $1.53
1-10: $1.48
10-100: $1.45
100-500: $1.42
SPP20N65C3
SPP20N65C3
Infineon Technologies
MOSFET COOL MOS N-CH 650V 20.7
Data Sheet
Negotiable
SPP20N65C3XKSA1
SPP20N65C3XKSA1
Infineon Technologies
MOSFET
Data Sheet
0-1: $2.93
1-10: $2.62
10-100: $2.14
100-500: $1.73
