Product Summary
The SST39SF010A-70-4C-NH is a CMOS Multi-Purpose Flash (MPF) manufactured with SST’s proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39SF010A-70-4C-NH writes (Program or Erase) with a 5.0V power supply. The SST39SF010A-70-4C-NH conforms to JEDEC standard pinouts for x8 memories. Featuring high performance Byte-Program, the SST39SF010A-70-4C-NH provides a maximum Byte-Program time of 20 μsec.
Parametrics
SST39SF010A-70-4C-NH absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD + 0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -1.0V to VDD + 1.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V; (6)Package Power Dissipation Capability (Ta = 25℃): 1.0W; (7)Through Hold Lead Soldering Temperature (10 Seconds): 300℃; (8)Surface Mount Lead Soldering Temperature (3 Seconds): 240℃; (9)Output Short Circuit Current: 100 mA.
Features
SST39SF010A-70-4C-NH features: (1)Organized as 128K x8 / 256K x8 / 512K x8; (2)Single 5.0V Read and Write Operations; (3)Superior Reliability, Endurance: 100,000 Cycles (typical); Greater than 100 years Data Retention; (4)Low Power Consumption: Active Current: 10 mA (typical); Standby Current: 30μA (typical); (5)Sector-Erase Capability, Uniform 4 KByte sectors; (6)Fast Read Access Time: 45 and 70 ns; (7)Latched Address and Data; (8)Fast Erase and Byte-Program; (9)Automatic Write Timing, Internal VPP Generation; (10)End-of-Write Detection, Toggle Bit; Data# Polling; (11)TTL I/O Compatibility; (12)JEDEC Standard, Flash EEPROM Pinouts and command sets; (13)Packages Available, 32-pin PLCC.

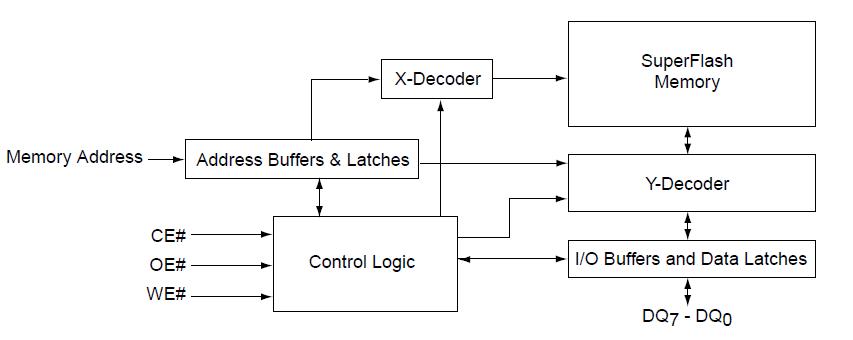

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST39SF010A-70-4C-NH |
Microchip Technology |
Flash 128K X 8 70ns |
Data Sheet |
Negotiable |
|
||||||||||||
|
SST39SF010A-70-4C-NHE |
Microchip Technology |
Flash 128K X 8 70ns |
Data Sheet |
|
|
||||||||||||
|
SST39SF010A-70-4C-NHE-T |
Microchip Technology |
Flash 1M (128Kx8) 70ns 5.0V Commercial |
Data Sheet |
|
|
||||||||||||
