Product Summary

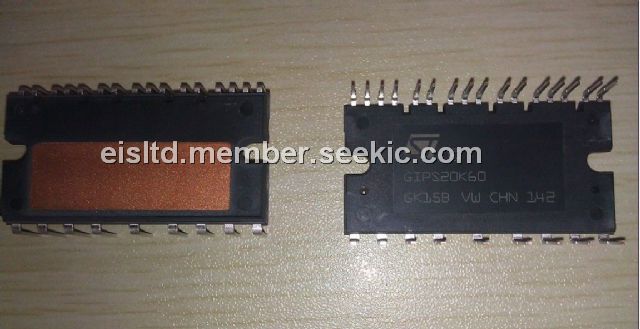

The STGIPS20K60 is an IGBT intelligent power module (IPM). It provides a compact, high performance AC motor drive for a simple and rugged design. The STGIPS20K60 mainly targets low power inverters for applications such as home appliances and air conditioners. It combines ST proprietary control ICs with the most advanced short circuit rugged IGBT system technology. Please refer to dedicated technical note TN0107 for mounting instructions. The applications of the STGIPS20K60 include 3-phase inverters for motor drives, Home appliances, such as washing machines, refrigerators, air conditioners.

Parametrics

STGIPS20K60 absolute maximum ratings: (1)Supply voltage applied between P - NU, NV, NW, VPN: 450 V; (2)Supply voltage (surge) applied between P - NU, NV, NW, VPN(surge): 500 V; (3)Collector emitter voltage (VIN = 0), VCES: 600 V; (4)Each IGBT continuous collector current at TC = 25℃, ±IC: 17 A; (5)Each IGBT pulsed collector current, ±ICP: 40 A; (6)Each IGBT total dissipation at TC = 25℃, PTOT: 42 W; (7)Short circuit withstand time, VCE = 0.5 V(BR)CES, TJ = 125℃, VCC = Vboot= 15V, VIN= 0 ÷ 5 V, tSCW: 5 μs.

Features

STGIPS20K60 features: (1)17A, 600V 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes; (2)3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis and pull down / pull up resistors; (3)Internal bootstrap diode; (4)Interlocking function; (5)VCE(sat) negative temperature coefficient; (6)Short-circuit rugged IGBTs; (7)Undervoltage lockout; (8)Smart shutdown function; (9)Comparator for fault protection against over temperature and overcurrent; (10)DBC fully isolated package; (11)Isolation rating of 2500 Vrms/min.

Diagrams

STGIPS20K60 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STGIPS20K60
STGIPS20K60
STMicroelectronics
IGBT Transistors IGBT IPM 17A-600V SDIP-25L Molded
Data Sheet
0-1: $12.11
1-10: $11.11
10-100: $9.50
100-250: $8.77
