STP7NK80ZFP

STP7NK80ZFP, Zener-protected SuperMESH Power MOSFET, TO-220FP, 800V, 1.5Ω, 5.2A, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: STP7NK80ZFP

Brand:: STMicroelectronics - ST | Pack: TO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-29

From Other Seller

Part Number:STP7NK80ZFP
US $0.10 - 0.50
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

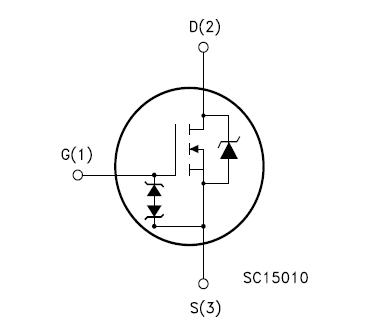

The STP7NK80ZFP is an N-channel Zener-protected SuperMESH power MOSFET. The STP7NK80ZFP is obtained through an extreme optimization of ST’s well established strip-based PowerMESH layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. The device complements ST full range of high voltage Power MOSFETs including revolutionary MDmesh products. The application of the STP7NK80ZFP includes switching applications.

Parametrics

STP7NK80ZFP absolute maximum ratings: (1)Drain-source voltage (VGS = 0), VDS: 800 V; (2)Gate-source voltage, VGS: ±30 V; (3)Drain current (continuous) at TC = 25℃, ID: 5.2A; (4)Drain current (continuous) at TC = 100℃, ID: 3.3A; (5)Drain current (pulsed), IDM: 20.8A; (6)Total dissipation at TC = 25℃, PTOT: 30W; (7)Derating factor: 0.24 W/℃; (8)Gate source ESD(HBM-C = 100pF, R = 1.5KΩ), VESD(G-S): 4000 V; (9)Peak diode recovery voltage slope, dv/dt: 4.5 V/ns; (10)Insulation withstand voltage (RMS) from all three leads to external heat sink (t = 1s; TC = 25℃), VISO: 2500 V; (11)Storage temperature, Tstg: -55 to 150℃; Max. operating junction temperature, Tj: -55 to 150℃.

Features

STP7NK80ZFP features: (1)Extremely high dv/dt capability; (2)100% avalange tested; (3)Gate charge minimized; (4)Very low intrinsic capacitances; (5)Very good manufacturing repeatibility.
