Product Summary

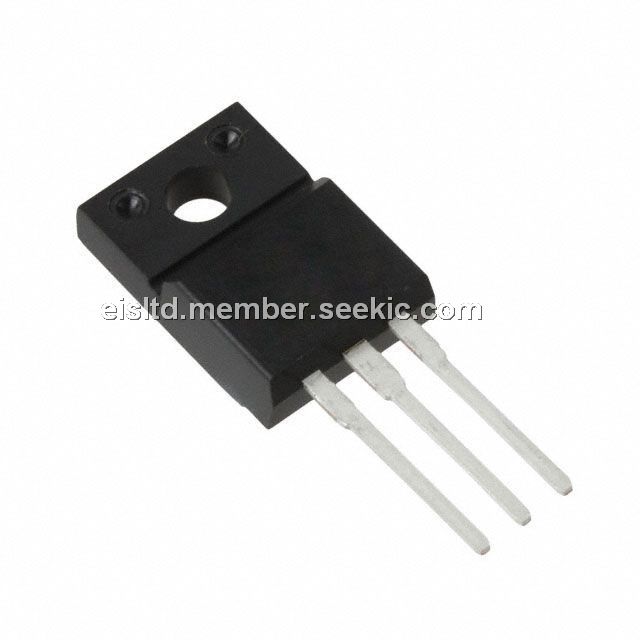

The STPS20150CFP is a high voltage power schottky rectifier. The STPS20150CFP is designed for high frequency Switched Mode Power Supplies.

Parametrics

STPS20150CFP absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 150 V; (2)RMS forward current, IF(RMS): 30 A; (3)Average forward current, TO-220AB, D2PAK / I2PAK, Tc = 155℃ Per diode, IF(AV): 10 A; TO-220FPAB, Tc = 135℃ Per device, IF(AV): 20A; (4)Surge non repetitive forward current, tp = 10 ms sinusoidal, IFSM: 180 A; (5)Repetitive peak avalanche power, tp = 1μs Tj = 25℃, PARM: 6700 W; (6)Storage temperature range, Tstg: -65 to + 175℃; (7)Maximum operating junction temperature, Tj: 175℃; (8)Critical rate of rise of reverse voltage, dV/dt: 10000 V/μs.

Features

STPS20150CFP features: (1)high junction temperature capability; (2)good trade off between leakage current and forward voltage drop; (3)low leakage current; (4)avalanche capability specified.

Diagrams

STPS20150CFP circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STPS20150CFP
STPS20150CFP
STMicroelectronics
Schottky (Diodes & Rectifiers) 2x10 Amp 150 Volt
Data Sheet
0-1: $0.74
1-10: $0.69
10-100: $0.58
100-250: $0.54
