Product Summary

The STPS3045CW is a power schottky rectifier. The STPS3045CW is suited for Switch-Mode Power Supply and high frequencyDC to DC converters. Packaged either in TO-220AB, ISOWATT220AB or D2PAK, the STPS3045CW is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Parametrics

STPS3045CW absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 45 V; (2)RMS forward current, IF(RMS): 30 A; (3)Average forward current, TO-220AB, D2PAK / I2PAK, Tc = 155℃ Per diode, IF(AV): 15 A; TO-220FPAB, Tc = 150℃ Per device, IF(AV): 30 A; (4)Surge non repetitive forward current, tp = 10 ms sinusoidal, IFSM: 220 A; (5)Repetitive peak reverse current, tp = 2μs square, F = 1kHz, IRRM: 1A; (6)Non repetitive peak reverse current, tp = 100 ms square, IRSM: 3A; (7)Storage temperature range, Tstg: -65 to +175℃; (8)Maximum operating junction temperature, Tj: 175℃; (9)Critical rate of rise of reverse voltage, dV/dt: 10000 V/μs.

Features

STPS3045CW features: (1)very small conduction losses; (2)negligible switching losses; (3)extremely fast switching; (4)low thermal resistance; (5)insulated package: TOP-3I, Insulating voltage = 2500V RMS, Capacitance = 12pF.

Diagrams

STPS3045CW circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

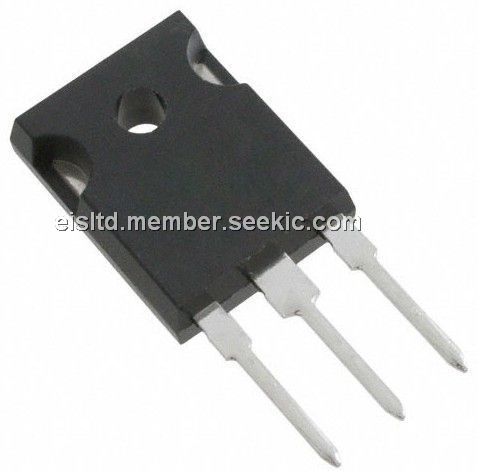

STPS3045CW
STPS3045CW
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X15 Amp 45 Volt
Data Sheet
0-1: $0.78
1-10: $0.69
10-100: $0.55
100-250: $0.48
