Product Summary

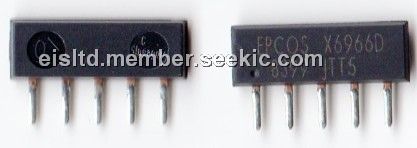

The B39361-X6966-N201 is a SAW multimedia filter.

Parametrics

B39361-X6966-N201 absolute maximum ratings: (1)Operable temperature range, TA: –25/+65℃; (2)Storage temperature range, Tstg: –40/+85℃; (3)DC voltage, VDC: 5 V; (4)AC voltage, Vpp: 10 V.

Features

B39361-X6966-N201 features: (1)IF filter for digital cable TV; (2)Standard IC package.

Diagrams

B39361-X6966-N201 pin configuration
