Product Summary

The T510048005AB is a Phase Control SCR. The applications of the T510048005AB include phase control, power supplies, light dimmers, motor control.

Parametrics

T510048005AB absolute maximum ratings: (1)RMS foeward current, IT(RMS): 125A; (2)average forward current, IT(AV): 80A; (3)One-half cycle surge current, ITSM: 1600A; (4)3 cycle surge current, ITSM: 1250A; (5)10 cycle surge current, ITSM: 1080A; (6)Minimum rate of rise of On-state current, di/dt: 100A/μs; (7)I2T(for fusing), ≥8.3milliseconds, I2T: 10,700A2sec; (8)Peak gate power dissipation, PGM: 16W; (9)Storage temperature, Tstg: -40 to +150℃; (10)Operating temperature, TJ: -40 to +125℃; (11)Mounting torque: 130in-lb.

Features

T510048005AB features: (1)Center fired, di/namic gate; (2)All diffused desigh; (3)LOW VTM; (4)Compression bonded encapsulation; (5)Hermetic glass to metal seal; (6)Low gate current.

Diagrams

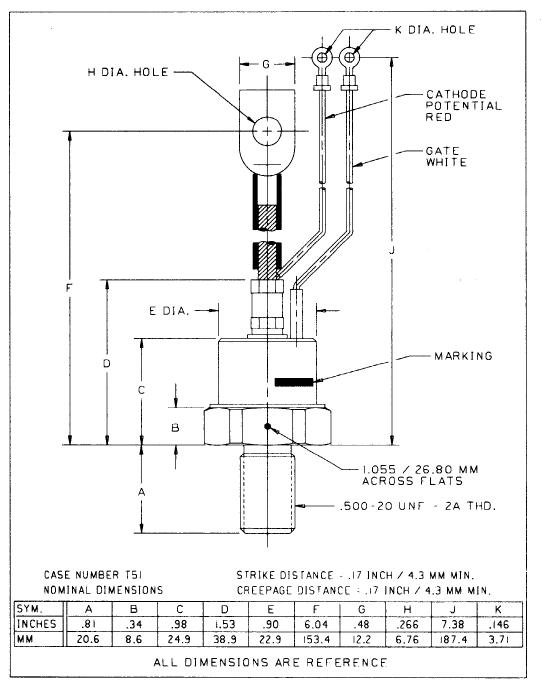

T510048005AB block diagram
