TEA1752T/N1

TEA1752T/N1, GreenChip III SMPS control IC, 16-SOIC, 200V, 2A, NXP Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.50

PartNumber:: TEA1752T/N1

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-30

From Other Seller

Part Number:TEA1752T/N1
US $0.10 - 1.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

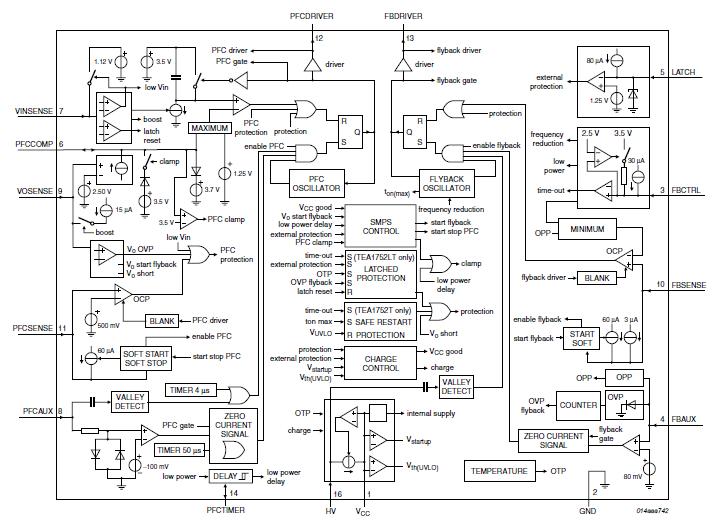

The TEA1752T/N1 is a third generation of green Switched Mode Power Supply (SMPS) controller IC. The TEA1752T/N1 combines a controller for Power Factor Correction (PFC) and a flyback controller. The high level of integration facilitates the design of a cost-effective power supply using a minimum number of external components. The special built-in green functions provide high efficiency at all power levels. This applies to quasi-resonant operation at high power levels, quasi-resonant operation with valley skipping and reduced frequency operation at lower power levels. At low power levels, the PFC switches off to maintain high efficiency. The TEA1752T/N1 enables highly efficient and reliable supplies with power requirements of up to 250 W to be designed easily and with a minimum number of external components.

Parametrics

TEA1752T/N1 absolute maximum ratings: (1)current on pin PFCDRIVER, duty cycle < 10 %, IPFCDRIVER: -0.8 to +2 A; (2)current on pin HV, IHV: 8 mA; (3)total power dissipation, Tamb < 75℃, Ptot: 0.6 W; (4)storage temperature, Tstg: -55 to +150℃; (5)junction temperature, Tj: -40 +150℃.

Features

TEA1752T/N1 features: (1)Integrated PFC and flyback controller; (2)Universal mains supply operation (70 V (AC) to 276 V (AC)); (3)Dual boost PFC with accurate maximum output voltage (NXP Semiconductors patented); (4)High level of integration, resulting in a very low external component count and a cost-effective design; (5)Adjustable PFC switch-off delay.
