Product Summary

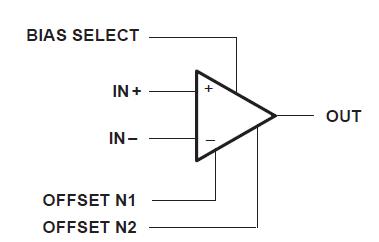

The TLC251CP is a low-cost, low-power programmable operational amplifier, designed to operate with single or dual supplies. Unlike traditional metal-gate CMOS operational amplifiers, this device utilizes Texas Instruments silicon-gate LinCMOSE process, giving them stable input offset voltages without sacrificing the advantages of metal-gate CMOS. This series of parts is available in selected grades of input offset voltage and can be nulled with one external potentiometer. Because the input common-mode range extends to the negative rail and the power consumption is extremely low, this family is ideally suited for battery-powered or energy-conserving applications.

Parametrics

TLC251CP absolute maximum ratings: (1)Supply voltage, VDD: 18 V; (2)Differential input voltage, VID: ±18 V; (3)Input voltage range, VI (any input): -0.3 V to 18 V; (4)Duration of short circuit at (or below) 25℃ free-air temperature: unlimited; (5)Continuous total dissipation: See Dissipation Rating Table; (6)Operating free-air temperature range, TA: 0℃ to 70℃; (7)Storage temperature range: -65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLC251CP features: (1)Wide Range of Supply Voltages 1.4 V to 16 V; (2)True Single-Supply Operation; (3)Common-Mode Input Voltage Range Includes the Negative Rail; (4)Low Noise: 30 nV/√Hz Typ at 1 kHz (High Bias); (5)ESD Protection Exceeds 2000 V Per MIL-STD-833C, Method 3015.1.
