Product Summary

The TLE4269G is a 5V low-drop fixed voltage regulator. The maximum operating voltage is 45 V. The output is able to drive a 150 mA load. It is short circuit protected and the thermal shutdown switches the output off if the junction temperature is in excess of 150℃. A reset signal is generated for an output voltage of VQ < 4.6 V.

Parametrics

TLE4269G absolute maximum ratings: (1)input voltage: -40 to 45V; (2)input current: internal limited; (3)input voltage: -0.3 to 45V; (4)input current: 1mA; (5)reset threshold voltage: -0.3 to 7V; (6)reset threshold current: -10 to 10mA; (7)ground current: 50mA; (8)reset output voltage: -0.3 to 7V.

Features

TLE4269G features: (1)Very low current consumption; (2)Early warning; (3)Reset output low doown to VQ = 1 V; (4)Overtemperature protection; (5)Reverse polarity proof; (6)Settable reset threshold; (7)Very low drop voltage; (8)Wide temperature range; (9)Integrated pull up resistor at logic outputs.

Diagrams

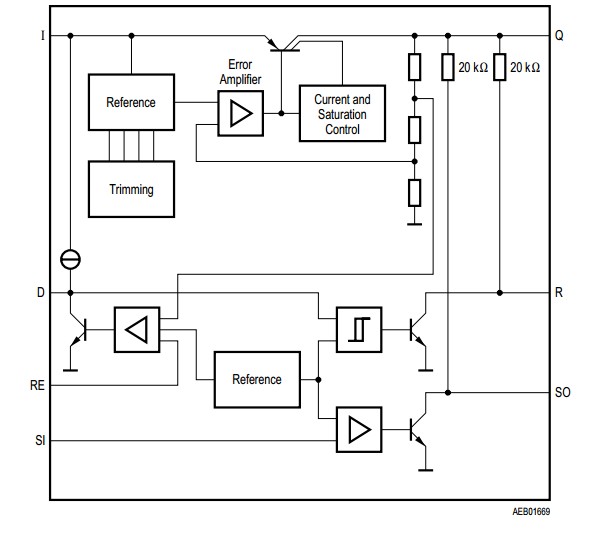

TLE4269G block diagram
