TLE6251DS

Product Summary

The TLE6251DS is a CAN-transceiver which is a monolithic integrated circuit in a PG-DSO-8 package for high speed differential mode data transmission (up to 1 Mbaud) and reception in automotive and industrial applications. It works as an interface between the CAN protocol controller and the physical bus lines compatible to ISO/DIS 11898. As a successor to the first generation of HS CAN (TLE6250), the TLE6251DS is designed to provide an excellent passive behavior when the transceiver is switched off (mixed networks, terminal 15/30 applications) and a remote wake-up capability via CAN bus in low power mode. This supports networks with partially un-powered nodes. The TLE6251DS has two operation modes, the normal and the stand-by mode. These modes can be chosen by the STB pin. If the TLE6251DS is in stand-by mode and a message on the bus is detected, the TLE6251DS changes the level at the RxD pin corresponding to the bus signal; (2)(wake-up flag). The TLE6251DS is also designed to withstand the severe conditions of automotive applications and to support 12 V and 24 V applications. The IC is based on the Smart Power Technology SPT which allows bipolar and CMOS control circuitry in accordance with DMOS power devices existing on the same monolithic circuit.

Parametrics

TLE6251DS absolute maximum ratings: (1)Supply voltage VCC: -0.3 to 5.5 V; (2)CAN bus voltage (CANH, CANL) VCANH/L: -32 to 40 V; (3)CAN bus differential voltage CANH, CANL, SPLIT VCAN diff: -40 to 40 V (CANH - CANL < |40 V|, CANH - SPLIT < |40 V|, CANL - SPLIT < |40 V|); (4)Input voltage at SPLIT VSPLIT: -27 to 40 V; (5)Logic voltages at STB, TxD, RxD VI: -0.3 to VCC V (0 V < VCC < 5.5 V); (6)Electrostatic discharge voltage at CANH, CANL, SPLIT vs. GND VESD: -6 to 6 kV human body model (100 pF via 1.5 kΩ); (7)Electrostatic discharge voltage VESD: -2 to 2 kV human body model (100 pF via 1.5 kΩ); (8)Storage temperature Tj: -40 to 150℃.

Features

TLE6251DS features: (1)CAN data transmission rate up to 1 Mbaud; (2)Compatible to ISO/DIS 11898; (3)Supports 12 V and 24 V automotive applications; (4)Low power mode with remote wake-up via CAN bus; (5)Wake signaling by RxD change; (6)No BUS load in stand-by mode; (7)Wide common mode range for electromagnetic immunity (EMI); (8)Digital inputs compatible to 3.3 and 5 V logic devices; (9)CAN short circuit proof to ground, battery and VCC; (10)Split termination to stabilize the recessive level; (11)TxD time-out function; (12)Overtemperature protection; (13)Protected against automotive transients; (14)Green Product (RoHS compliant); (15)AEC Qualified.

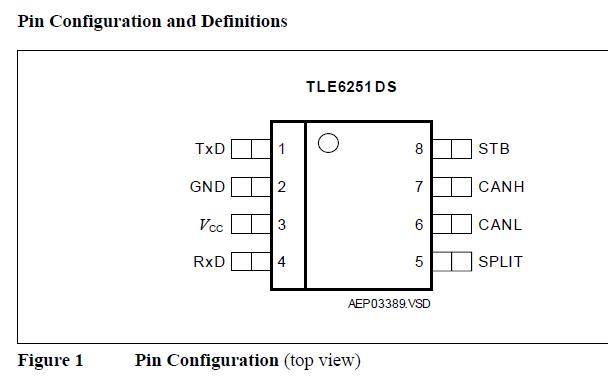

Diagrams
