TLE7259G

Product Summary

The TLE7259G is a monolithic integrated circuit in a P-DSO-8-3 package. It works as an interface between the protocol controller and the physical bus. The TLE7259G is especially suitable to drive the bus line in LIN systems in automotive and industrial applications. In order to reduce the current consumption, the TLE7259G offers a sleep operation mode. In this mode the voltage regulator can be switched off by the TLE7259G to minimize the current consumption of the whole application. A wake-up caused by a message on the bus or a signal at the wake (WK) pin, enables the voltage regulator and sets the device to standby operation mode. The TLE7259G has a BUS short to GND feature implemented, to avoid a battery discharge. The TLE7259G offers a very good EMC performance within a broad frequency range independent from battery voltage. This is achieved by implementing a slope control mechanism based on a constant slew rate. The TLE7259G can also be used with 3.3 V and 5 V micro controllers.

Parametrics

TLE7259G absolute maximum ratings: (1)Battery supply voltage VS: -0.3 to 40 V (LIN Spec 1.3(2.0); Line 10.1.3 (3.1.3)); (2)Bus input voltage versus GND VBUS,G: -40 to 40V t < 1 s; (3)Bus input voltage versus VS VBUS,Vs: -40 to 40V t < 1 s; (4)Wake input versus GND VWK,G: -40 to 40V; (5)Wake input versus VS VWK,Vs: -40 to 40V; (6)Logic voltages at EN, TxD, RxD VIO: -0.3 to 5.5 V; (7)Inhibit Voltage versus GND VINH,G: -0.3 to 40V; (8)Inhibit Voltage Versus VS VINH, Vs: -40 to 0.3V; (9)Output current at INH IINH: -150 to 80 mA pos. output current is internally limited; (10)Electrostatic discharge voltage at VS, Bus, Wk versus GND VESD: -4 to 4 kV human body model (100 pF via 1.5 kΩ); (11)Electrostatic discharge voltage Jedec Norm VESD: -2 to 2 kV human body model (100 pF via 1.5 kΩ); (12)Junction temperature Tj: -40 to 150℃.

Features

TLE7259G features: (1)Transmission rate up to 20 kBaud; (2)Compatible to LIN specification 1.2, 1.3 and 2.0; (3)Support of K-line function; (4)Very low current consumption in sleep mode; (5)Very low leakage current in unpowered state; (6)Control output for voltage regulator; (7)Wake up source recognition (local/remote); (8)For 3.3 V and 5 V μC I/O; (9)Suitable for 12V and 24V boardnet; (10)Bus short to VBAT protection; (11)Bus short to GND handling; (12)Overtemperature protection.

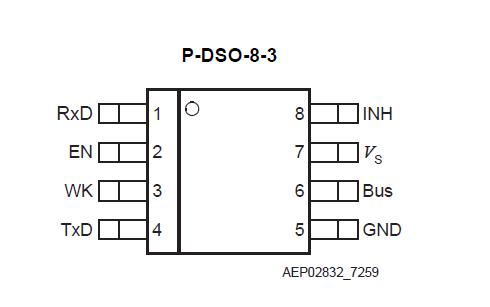

Diagrams
