Product Summary

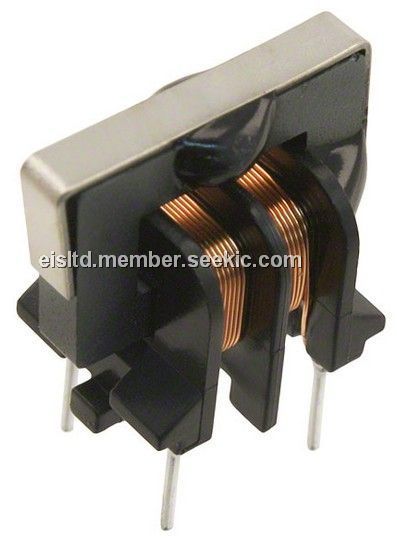

The TLF9UA102W0R8 is a common mode choke filter. The applications of the TLF9UA102W0R8 include as a preventive measure against noise terminal voltage or power supply noise in TV or VTR units, SW power supplies, NC machines, computer systems, peripheral units, measuring instruments, and controllers, low-current applications.
Parametrics
TLF9UA102W0R8 absolute maximum ratings: (1)Rated current: 800mA; (2)Operating Temperature Range: ー25℃ ~ +105℃; (3)Storage temperature range: -40℃ ~ +85℃; (4)Rated current: Within the specified range; (5)Inductance: Within the specified tolerance; (6)DC resistance: Within the specified tolerance; (7)Insulation resistance between wires: 100MΩ min.
Features
TLF9UA102W0R8 feature: Small-sized configuration.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLF9UA102W0R8 |
|
CHOKE COMMON MODE 1000UH |
Data Sheet |
Negotiable |
|
||||||||||||||
 |
TLF9UA102W0R8K1 |
Taiyo Yuden |
Common Mode Inductors (Chokes) COMMON MODE CHK COIL 1.0MH |
Data Sheet |
|
|
||||||||||||||
