Product Summary

The TS339IPT is a micropower CMOS quad voltage comparator with extremely low consumption of 9μA typ/comparator. Similar performances are offered by the quad micropower comparator TS3704 with a push-pull CMOS output. Thus response times remain similar to the LM339.

Parametrics

TS339IPT absolute maximum ratings: (1)Supply Voltage, VCC+: 18 V; (2)Differential Input Voltage, Vid: ±18 V; (3)Input Voltage, Vi: 18 V; (4)Output Voltage, Vo: 18 V; (5)Output Current, Io: 20 mA; (6)Forward Current in ESD Protection Diodes on Inputs, IF: 50 mA; (7)Power Dissipation, DIP14, pd: 1500mW; SO14, pd: 830mW; TSSOP14， pd: 710mW; (8)Storage Temperature Range, Tstg: -65 to +150℃; (9)HBM: Human Body Model, ESD: 50 V; MM: Machine Model, ESD: 40V; CDM: Charged Device Model, ESD: 800 V.

Features

TS339IPT features: (1)Extremely low supply current: 9μa typ/comp.; (2)Wide single supply range 2.7V to 16V or dual supplies (±1.35V to ±8V); (3)Extremely low input bias current: 1pA typ.; (4)Extremely low input offset current: 1pA typ.; (5)Input common-mode voltage range includes GND; (6)High input impedance: 1012Ω typ; (7)Fast response time: 1.5μs typ. for 5mV overdrive; (8)Pin-to-pin and functionally compatible with bipolar LM339.

Diagrams

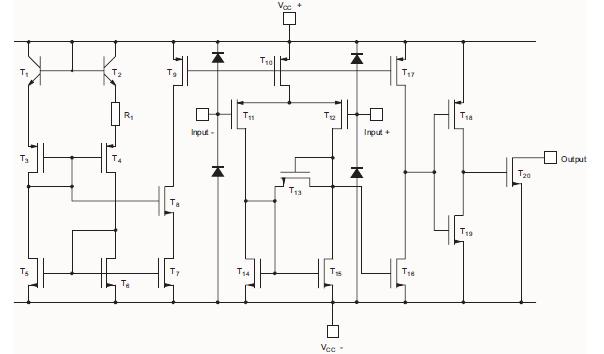

TS339IPT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TS339IPT
TS339IPT
STMicroelectronics
Comparator ICs Micropower Quad Volt
Data Sheet
0-1: $0.52
1-10: $0.46
10-100: $0.35
100-250: $0.31
