Product Summary

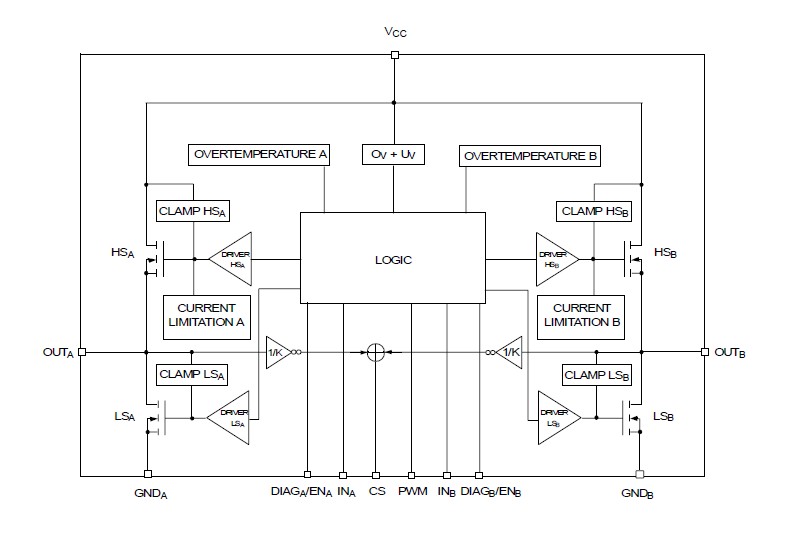

The VNH2SP30 is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic High-Side drivers and two Low-Side switches. The High-Side driver switch of the VNH2SP30 is designed using STMicroelectronic well known and proven proprietary VIPower. M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry. The Low-Side switche of the VNH2SP30 is a vertical MOSFET manufactured using STMicroelectronic’s proprietary EHD process. The three dice are assembled in MultiPower SO-30 package on electrically isolated leadframes. This package, specifically designed for the harsh automotive environment offers improved thermal performance thanks to exposed die pads.

Parametrics

VNH2SP30 absolute maximum ratings: (1)VCC Supply Voltage: + 41 V; (2)Imax Maximum Output Current (continuous): 30 A; (3)IR Reverse Output Current (continuous): -30 A; (4)IIN Input Current (INA and INB pins): ±10 mA; (5)IEN Enable Input Current (DIAGA/ENA and DIAGB/ENB pins): ±10 mA; (6)Ipw PWM Input Current: ±10 mA; (7)VCS Current Sense Maximum Voltage: -3 to +15 V; (8)Tj Junction Operating Temperature: Internally Limited; (9)Tc Case Operating Temperature: -40 to 150℃; (10)TSTG Storage Temperature: -55 to 150℃.

Features

VNH2SP30 features: (1)Output current: 30A; (2)5V logic level compatible inputs; (3)Undervoltage and overvoltage shut-down; (4)Overvoltage clamp; (5)Thermal shut down; (6)Cross-conductioprotection; (7)Linear current limiter; (8)Very low stand-by power consumption; (9)PWM operatioup to 20 KHz; (10)Protectioagainst: Loss of ground and loss of VCC; (11)Current sense output proportional to motor current; (12)Icompliance with the 2002/95/EC europeadirective.
