Product Summary

The BCM56514A0KFEBG is a 24-port GBE multilayer switch with four 10 gbe/higig+ ports.

Features

BCM56514A0KFEBG features: (1)Fifth generation of StrataSwitch and StrataXGS product lines; (2)24 10/100/1000 Mbps Ethernet ports supporting SGMII and SerDes interfaces for both copper and fiber connections; (3)The BCM56514 device, is a powerful, highly integrated member of the scalable StrataXGS III product family; (4)2.5 Gbps, 3 Gbps, 10 Gbps or 12 Gbps HiGig stacking ports; (5)Four 10-GbE switching ports with CX4 support; (6)Line-rate switching for all packet sizes and conditions; (7)On-chip data packet memory and table memory; (8)IPv6 routing and tunneling; (9)Advanced ContentAware classification Filtering Processors (FP); (10)Advanced security features in hardware; (11)Port trunking and mirroring supported across stack; (12)Advanced packet flow control: Head of line blocking prevention; Backpressure support; (13)Eight QoS queues per port with hierarchical minimum/maximum shaping per Classes of Service (CoS) per queue/per port; (14)Standard compliant 802.1ad provider bridging; (15)Compatible with BCM5708S, the industry’s first 2.5 Gbps SerDes-based ToE solution.

Diagrams

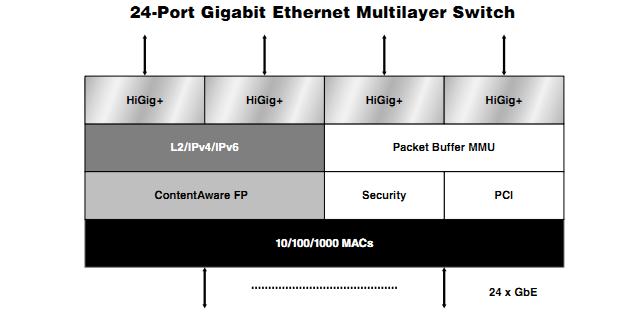

BCM56514A0KFEBG block diagram
