Product Summary

The AD586KRZ is a major advance in the state-of-the-art in a monolithic voltage reference. Using a proprietary ion-implanted buried Zener diode and laser wafer trimming of high stability thin-film resistors, the AD586KRZ provides outstanding performance at low cost. The AD586KRZ offers much higher performance than most other 5 V references. Because the AD586KRZ uses an industry standard pinout, many systems can be upgraded instantly with the AD586JRZ. The buried Zener approach to reference design provides lower noise and drift than bandgap voltage references. The AD586KRZ offers a noise reduction pin which can be used to further reduce the noise level generated by the buried Zener.

Parametrics

AD586KRZ absolute maximum ratings: (1)VIN to Ground: 36 V; (2)Power Dissipation (25℃): 500 mW; (3)Storage Temperature: –65℃ to +150℃; (4)Lead Temp (Soldering, 10 sec): +300℃; (5)Package Thermal Resistance: qJC: 22℃/W, θJA: 110℃/W; (6)Output Protection: Output safe for indefinite short to ground or VIN.

Features

AD586KRZ features: (1)Laser Trimmed to High Accuracy: 5.000 V 62.0 mV (M Grade); (2)Trimmed Temperature Coefficient: 2 ppm/℃ max, 0℃ to +70℃ (M Grade), 5 ppm/8C max, -40℃ to +85℃ (B & L Grades), 10 ppm/℃ max, -55℃ to +125℃ (T Grade); (3)Low Noise, 100 nV/√Hz; (4)Noise Reduction Capability; (5)Output Trim Capability; (6)MIL-STD-883 Compliant Versions Available; (7)Industrial Temperature Range SOICs Available; (8)Output Capable of Sourcing or Sinking 10 mA.

Diagrams

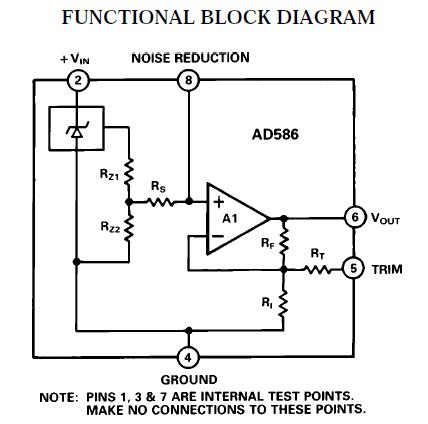

AD586KRZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD586KRZ
AD586KRZ

IC VREF SERIES PREC 5V 8-SOIC
Data Sheet
0-1: $5.52
1-10: $4.97
10-100: $4.09
100-250: $3.75
250-500: $3.42
500-1000: $2.98
1000-2500: $2.94
AD586KRZ-REEL
AD586KRZ-REEL

IC VREF SERIES PREC 5V 8-SOIC
Data Sheet
0-2500: $2.94
AD586KRZ-REEL7
AD586KRZ-REEL7

IC VREF SERIES PREC 5V 8-SOIC
Data Sheet
0-750: $3.16
