Product Summary
The AD7302BRUZ is a dual, 8-bit voltage out DAC that operates from a single +2.7 V to +5.5 V supply. Its on-chip precision output buffers allow the DAC outputs to swing rail to rail. The AD7302 has a parallel microprocessor and DSP-compatible interface with high speed registers and double buffered interface logic. Data is loaded to the registers on the rising edge of CS or WR and the A/B pin selects either DAC A or DAC B. The applications of the AD7302BRUZ include Portable Battery Powered Instruments, Digital Gain and Offset Adjustment, Programmable Voltage and Current Sources, Programmable Attenuators.
Parametrics
AD7302BRUZ absolute maximum ratings: (1)VDD to GND: -0.3 V to +7 V; (2)Reference Input Voltage to AGND: -0.3 V to VDD + 0.3V; (3)Digital Input Voltage to DGND: -0.3 V to VDD + 0.3 V; (4)AGND to DGND: -0.3 V, 0.3 V; (5)VOUTA, VOUTB to AGND: -0.3 V, VDD + 0.3 V; (6)Operating Temperature Range; (7)Commercial (B Version): -40℃ to +105℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Junction Temperature: +150℃; (10)Plastic DIP Package, Power Dissipation: 900 mW; (11)θJA Thermal Impedance: 102℃/W; (12)Lead Temperature (Soldering, 10 sec): +260℃; (13)TSSOP Package, Power Dissipation: 700 mW; (14)θJA Thermal Impedance: 143℃/W; (15)Lead Temperature, Soldering, Vapor Phase (60 sec): +215℃; Infrared (15 sec): +220℃; (16)SOIC Package, Power Dissipation: 870 mW; (17)θJA Thermal Impedance: 74℃/W; (18)Lead Temperature, Soldering, Vapor Phase (60 sec): +215℃; Infrared (15 sec): +220℃.
Features
AD7302BRUZ features: (1)Two 8-Bit DACs In One Package; (2)20-Lead DIP/SOIC/TSSOP Package; (3)+2.7 V to +5.5 V Operation; (4)Internal and External Reference Capability; (5)DAC Power-Down Function; (6)Parallel Interface; (7)On-Chip Output Buffer, Rail-to-Rail Operation; (8)Low Power Operation 3 mA max @ 3.3 V; (9)Power-Down to 1 mA max @ 25℃.

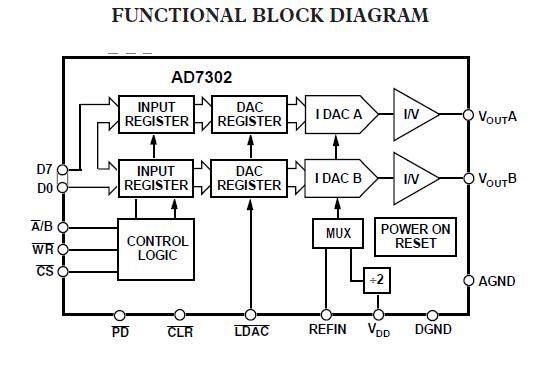

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7302BRUZ |
|

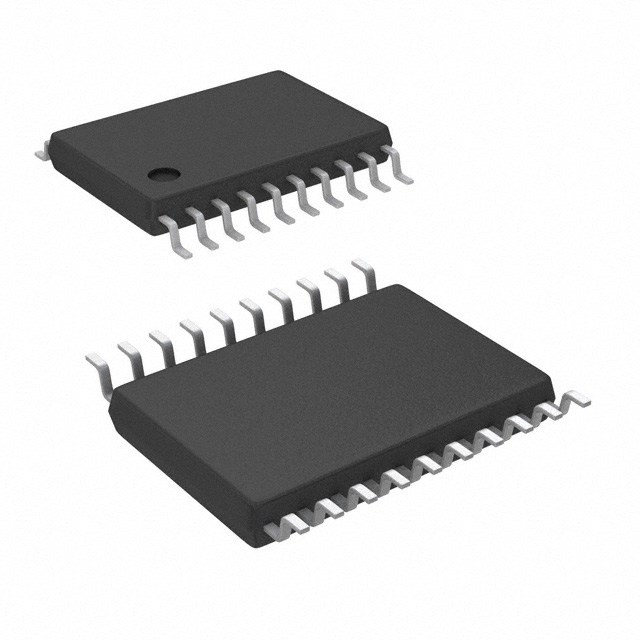

IC DAC 8BIT DUAL R-R 20-TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
AD7302BRUZ-REEL |
|
IC DAC 8BIT DUAL R-R 20-TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
AD7302BRUZ-REEL7 |
|
IC DAC 8BIT DUAL R-R 20-TSSOP |
Data Sheet |
|
|
||||||||||||||||||
