Product Summary

The AD746JRZ is a dual operational amplifier, consisting of two AD744 BiFET op amps on a single chip. These precision monolithic op amps offer excellent dc characteristics plus rapid settling times, high slew rates and ample bandwidths. In addition, the AD746JRZ provides the close matching ac and dc characteristics inherent to amplifiers sharing the same monolithic die. The applications of the AD746JRZ include Dual Output Buffers for 12- and 14-Bit DACs, Input Buffers for Precision ADCs, Wideband, Preamplifiers and Low Distortion Audio Circuitry.

Parametrics

AD746JRZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation2: 500 mW; (3)Input Voltage: ±VS; (4)Output Short Circuit Duration (For One Amplifier): Indefinite; (5)Differential Input Voltage: +VS and -VS; (6)Storage Temperature Range (Q): -65℃ to +150℃; (7)Storage Temperature Range (N, R): -65℃ to +125℃; (8)Operating Temperature Range, AD746J: 0℃ to +70℃; (9)Lead Temperature Range (Soldering 60 seconds): +300℃.

Features

AD746JRZ features: (1)AC performance, 500 ns Settling to 0.01% for 10 V Step; (2)75 V/ms Slew Rate; (3)0.0001% Total Harmonic Distortion (THD); (4)13 MHz Gain Bandwidth; (5)Internal Compensation for Gains of +2 or Greater; (6)DC performance, 0.5 mV max Offset Voltage (AD746B); (7)10 mV/8C max Drift (AD746B); (8)175 V/mV min Open Loop Gain (AD746B); (9)2 mV p-p Noise, 0.1 Hz to 10 Hz; (10)Available in Plastic Mini-DIP, Cerdip and Surface Mount Packages; (11)Available in Tape and Reel in Accordance with EIA-481A Standard; (12)MIL-STD-883B Processing also Available; (13)Single Version: AD744.

Diagrams

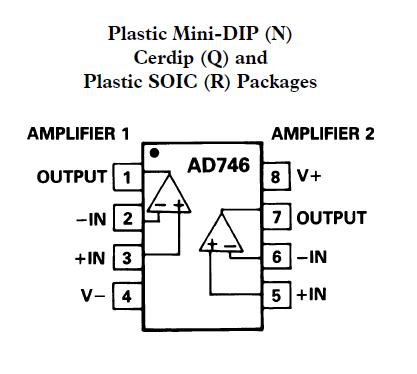

AD746JRZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD746JRZ
AD746JRZ

IC OPAMP BIFET 13MHZ DUAL 8SOIC
Data Sheet
0-1: $5.56
1-10: $5.01
10-100: $4.12
100-250: $3.78
250-500: $3.45
500-1000: $3.00
1000-2500: $2.97
AD746JRZ-REEL
AD746JRZ-REEL

IC OPAMP BIFET 13MHZ DUAL 8SOIC
Data Sheet
0-2500: $2.97
AD746JRZ-REEL7
AD746JRZ-REEL7

IC OPAMP BIFET 13MHZ DUAL 8SOIC
Data Sheet
0-1: $5.74
1-10: $5.16
10-25: $4.69
25-100: $4.25
100-250: $3.89
