Product Summary

The ADSP-BF532SBBCZ400 is a high performance Blackfin processor. The ADSP-BF532SBBCZ400 combines a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single instruction, mul-tiple data (SIMD) multimedia capabilities into a single instruction set architecture. The ADSP-BF532SBBCZ400 processors are completely code and pin-compatible, differing only with respect to their performance and on-chip memory.

Parametrics

ADSP-BF532SBBCZ400 absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDDINT): –0.3 V to +1.45 V; (2)External (I/O) Supply Voltage (VDDEXT): –0.5 V to +3.8 V; (3)Input Voltage:–0.5 V to +3.8 V; (4)Output Voltage Swing: –0.5 V to VDDEXT + 0.5 V; (5)Storage Temperature Range: –65 to +150℃; (6)Junction Temperature While Biased: 125℃.

Features

ADSP-BF532SBBCZ400 features: (1)Up to 600MHz high performance Blackfin processor; (2)Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit shifter; (3)RISC-like register and instruction model for ease of programming and compiler-friendly support; (4)Advanced debug, trace, and performance monitoring; (5)Wide range of operating voltages; (6)Qualified for Automotive Applications; (7)Programmable on-chip voltage regulator; (8)160-ball CSP_BGA, 169-ball PBGA, and 176-lead LQFP packages; (9)Up to 148K bytes of on-chip memory (see Table 1 on Page 3); (10)Memory management unit providing memory protection; (11)External memory controller with glueless support for SDRAM, SRAM, flash, and ROM; (12)Flexible memory booting options from SPI and externalmemory.

Diagrams

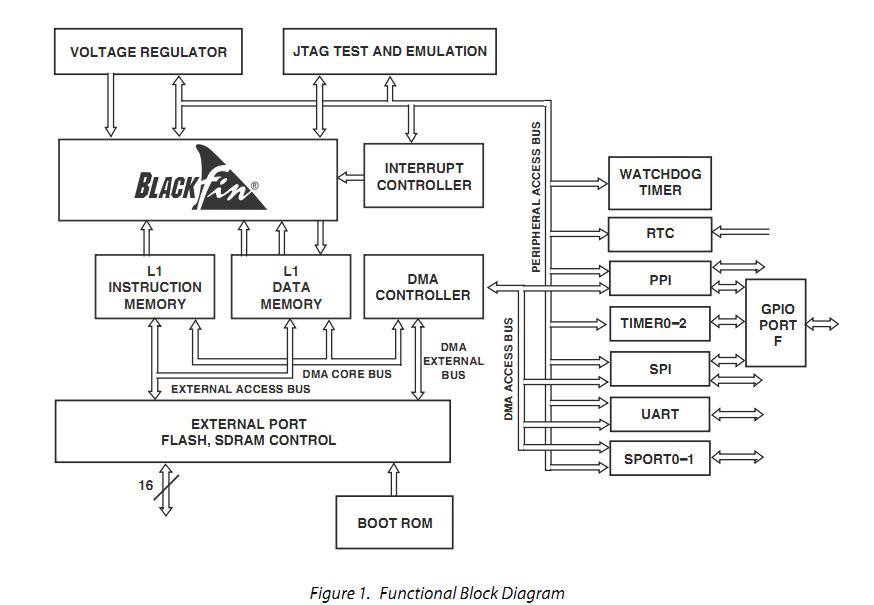

ADSP-BF532SBBCZ400 functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADSP-BF532SBBCZ400
ADSP-BF532SBBCZ400


IC DSP CTLR 16B 400MHZ 160CSPBGA

Data Sheet

0-1: $11.85
1-10: $10.96
10-100: $9.36
100-250: $8.59
250-500: $8.17
500-1000: $7.90
