Product Summary

The AD8001ARZ is a low power, high-speed amplifier designed to operate on ±5 V supplies. The AD8001ARZ features unique transimpedance linearization circuitry. This allows it to drive video loads with excellent differential gain and phase performance on only 50 mW of power. The AD8001ARZ is a current feedback amplifier and features gain flatness of 0.1 dB to 100 MHz while offering differential gain and phase error of 0.01% and 0.025°. This makes the AD8001ARZ ideal for professional video electronics such as cameras and video switchers. The applications of the AD8001ARZ include A-to-D Driver, Video Line Driver, Professional Cameras, Video Switchers, Special Effects, RF Receivers.

Parametrics

AD8001ARZ absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Internal Power Dissipation2, Plastic DIP Package (N): 1.3W; Small Outline Package (R): 0.9W; (3)SOT-23-5 Package (RT): 0.5 W; (4)Input Voltage (Common Mode): ±VS; (5)Differential Input Voltage: ±1.2 V; (6)Output Short Circuit Duration: Observe Power Derating Curves; (7)Storage Temperature Range N, R: -65℃ to +125℃; (8)Operating Temperature Range (A Grade): -40℃ to +85℃; (9)Lead Temperature Range (Soldering 10 sec): +300℃.

Features

AD8001ARZ features: (1)Excellent Video Specifications (RL = 150 V, G = +2), Gain Flatness 0.1 dB to 100 MHz; 0.01% Differential Gain Error; 0.0258 Differential Phase Error; (2)Low Power, 5.5 mA Max Power Supply Current (55 mW); (3)High Speed and Fast Settling, 880 MHz, –3 dB Bandwidth (G = +1); 440 MHz, –3 dB Bandwidth (G = +2); 1200 V/ms Slew Rate; 10 ns Settling Time to 0.1%; (4)Low Distortion, –65 dBc THD, fC = 5 MHz; 33 dBm 3rd Order Intercept, F1 = 10 MHz; –66 dB SFDR, f = 5 MHz; (5)High Output Drive, 70 mA Output Current; Drives Up to Four Back-Terminated Loads (75 V Each) While Maintaining Good Differential Gain/Phase Performance (0.05%/0.258).

Diagrams

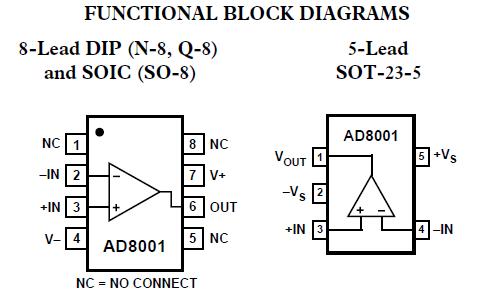

AD8001ARZ block diagram
