AD8186ARUZ

Product Summary

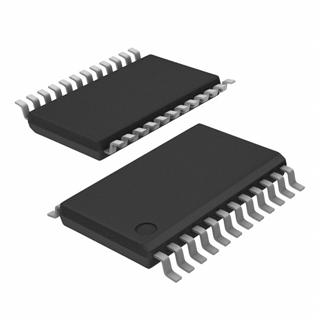

The AD8186ARUZ is a high speed, single-supply, triple 2-to-1 multiplexer. It offers –3 dB large signal bandwidth of over 480 MHz along with a slew rate in excess of 1500 V/μs. With better than –80 dB of all hostile crosstalk and –95 dB OFF isolation, they are suited for many high speed applications. The differential gain anddifferential phase error of 0.05% and 0.05°, along with 0.1 dB flatness to 85 MHz, make the AD8186ARUZ ideal for professional and component video multiplexing. They offer 4 ns switching time, making them an excellent choice for switching video signals while consuming less than 20 mA on a single 5 V supply (100 mW). Both devices have a high speed disable feature that sets the outputs into a high impedance state. This allows the building of larger input arrays while minimizing OFF channel output loading. The devices are offered in a 24-lead TSSOP packag. The AD8186ARUZ can be applied in switching RGB in LCD and plasma displays, and RGB video switchers and routers.

Parametrics

AD8186ARUZ absolute maximum ratings: (1)Supply Voltage: 5.5 V; (2)DVCC to DGND: 5.5 V; (3)DVCC to VEE: 8.0 V; (4)VCC to DGND: 8.0 V; (5)Output Short Circuit Operation: Indefinite; (6)Storage Temperature Range: -65°C to +150°C; (7)Lead Temperature Range (Soldering 10 sec): 300°C.

Features

AD8186ARUZ features: (1)fully buffered inputs and outputs; (2)fast channel-to-channel switching: 4 ns; (3)single-supply operation (5 v); (4)high speed:480 mhz bandwidth (–3 db) 2 v p-p; (5)fast settling time of 7 ns to 0.1%; (6)low current: 19 mA/20 mA; (7)excellent video specifications; (8)fast settling time of 7 ns to 0.1%; (9)low current: 19 mA/20 mA; (10)excellent video specifications; (11)0.05% differential gain error; (12)0.05°differential phase error; (13)low glitch; (14)all hostile crosstalk; (15)high off isolation of –95 DB @ 5 mhz; (16)low cost; (17)fast, high impedance disable feature for connecting multiple outputs; (18)logic-shifted outputs.

Diagrams
