AD824ARZ-14

AD824ARZ-14, SOP, single supply, rail-to-rail low power, FET-input Op Amp, ±18 V, ±30 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: AD824ARZ-14

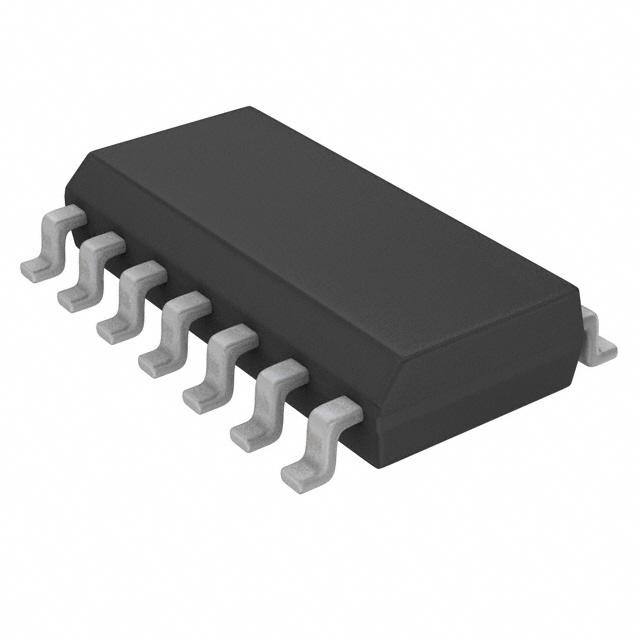

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AD824ARZ-14
US $0.15 - 2.40
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
STK795-820

US $20.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

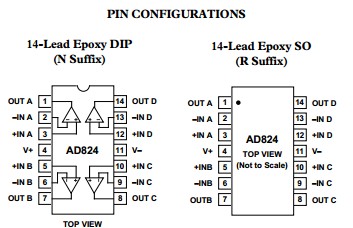

The AD824ARZ-14 is a quad, FET input, single supply amplifier, featuring rail-to-rail outputs. The combination of FET inputs and rail-to-rail outputs makes the AD824ARZ-14 useful in a wide variety of low voltage applications where low input current is a primary consideration. The AD824ARZ-14 is guaranteed to operate from a 3 V single supply up to ±15 volt dual supplies. The AD824ARZ-14 is specified over the extended industrial (-40°C to+85°C) temperature range and is available in 14-pin DIP and narrow 14-pin and 16-pin SO packages. The AD824ARZ-14 can be applied in photo diode preamplifier, battery powered instrumentation, power supply control and protection, medical instrumentation, remote sensors, low voltage strain gage amplifiers, and dac output amplifier.

Parametrics

AD824ARZ-14 absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: –VS – 0.2 V to +VS; (3)Differential Input Voltage: ±30 V; (4)Output Short Circuit Duration to GND: Indefinite; (5)Storage Temperature Range N, R Package: –65°C to +150°C; (6)Operating Temperature Range AD824A, B: –40°C to +85°C; (7)Junction Temperature RangeN, R Package: –65°C to +150°C; (8)Lead Temperature Range (Soldering, 60 sec): +300°C.

Features

AD824ARZ-14 features: (1)single supply operation: 3 v to 30 v; (2)very low input bias current: 2 pA; (3)wide input voltage range; (4)rail-to-rail output swing; (5)low supply current: 500 mA/Amp; (6)wide bandwidth: 2 MHz; (7)slew rate: 2 V/ms; (8)no phase reversal.
