Product Summary
The AD8571ARZ is a single, dual, and quad amplifier.The AD8571ARZ eliminates the intermodulation effects from interaction of the chopping function with the signal frequency in ac applications.The AD8571ARZ is perfectly suited for applications where error sources cannot be tolerated.The AD8571ARZ single amplifier is available in 8-lead MSOP and narrow 8-lead SOIC packages.
Parametrics
AD8571ARZ absolute maximum ratings:(1)Supply Voltage: 6V; (2)Input Voltage: GND to VS + 0.3 V; (3)Differential Input Voltage: ±5.0 V; (4)ESD (Human Body Model:2000 V;(5)Output Short-Circuit Duration to GND: Indefinite;(6) Storage Temperature Range: –65℃ to +150℃;(7) Operating Temperature Range: -40°C to +125°C; (8)Junction Temperature Range : –65℃ to +150℃; (9)Lead Temperature Range (Soldering, 60 sec): +300℃.
Features
AD8571ARZ features:(1)Low offset voltage: 1 μV;(2)Input offset drift: 0.005 μV/°C;(3)Rail-to-rail input and output swing
;(4)5 V/2.7 V single-supply operation;(5)High gain: 145 dB typical;(6)CMRR: 140 dB typical;(7)PSRR: 130 dB typical; (8)Ultralow input bias current: 10 pA typical; (9)Low supply current: 750 μA/op amp; (10)Overload recovery time: 50 μs; (11)No external capacitors required.

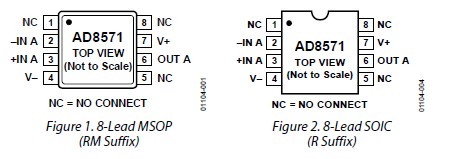

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8571ARZ |
|
IC OPAMP CHOPPER R-R 30MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8571ARZ-REEL |
|
IC OPAMP CHOPPER R-R 30MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8571ARZ-REEL7 |
|
IC OPAMP CHOPPER R-R 30MA 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
