Product Summary

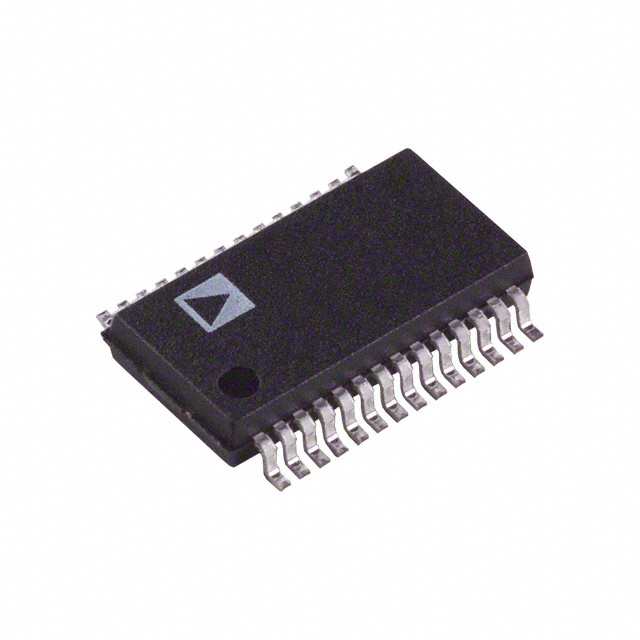

The AD9051BRSZRL is a complete 10-bit monolithic sampling analogto-digital converter (ADC) with an onboard track-and-hold and reference. The unit is designed for low cost, high performanceapplications and requires only +5 V and an encode clock to achieve 60 MSPS sample rates with 10-bit resolution. The encode clock is TTL compatible and the digital outputs are CMOS; both can operate with +5 V/+3 V logic. The two-step architecture used in the AD9051BRSZRL is optimized to provide the best dynamic performance available while maintaining low power consumption. A +2.5 V reference is included onboard, or the user can provide an external reference voltage for gain control or matching of multiple devices. Fabricated on a state-of-the-art BiCMOS process, the AD9051BRSZRL is packaged in a space saving surface mount package (SSOP) and is specified over the industrial temperature range (–40°C to +85°C).The AD9051BRSZRL can be applied in medical imaging, digital communications, professional video, instrumentation, and set-top box.
Parametrics
AD9051BRSZRL bsolute maximum ratings: (1)VD, VDD: +7 V; (2)Analog Inputs: –0.5 V to VD + 0.5 V; (3)Digital Inputs: –0.5 V to VD; (4)VREF Input: –0.5 V to VD; (5)Digital Output Current: 20 mA; (6)Operating Temperature: –55°C to +125°C; (7)Storage Temperature: –65°C to +150°C; (8)Maximum Junction Temperature: +175°C; (9)Maximum Case Temperature: +150°C.
Features
AD9051BRSZRL features: (1)60 MSPS Sampling Rate; (2)9.3 Effective Number of Bits at fIN = 10.3 MHz; (3)250 mW Total Power at 60 MSPS; (4)Selectable Input Bandwidth of 50 MHz or 130 MHz; (5)On-Chip T/H and Voltage Reference; (6)Single +5 V Supply Voltage; (7)+5 V or +3 V Logic I/O Compatible; (8)Input Range and Output Coding Options Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9051BRSZRL |
|
IC ADC 10BIT 60MSPS 28-SSOP |
Data Sheet |
|
|
||||||
|
AD9051BRSZRL-2V |
|
IC ADC 10BIT 60MSPS 28-SSOP |
Data Sheet |
|
|
||||||
