Product Summary

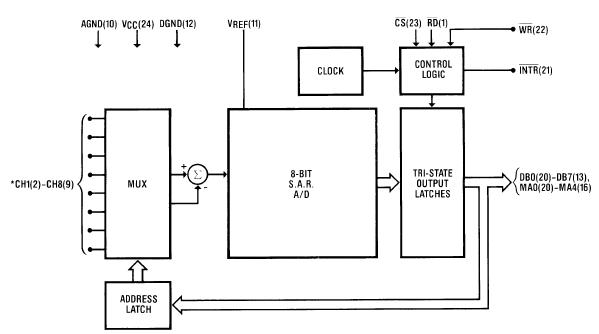

The ADC0844CCN is a CMOS 8-bit successive approximation A/D converter with versatile analog input multiplexers. The ADC0844CCN can be software configured for single-ended, differential or pseudo-differential modes of operation. The differential mode provides low frequency input common mode rejection and allows offsetting the analog range of the converter. In addition, the A/D’s reference can be adjusted enabling the conversion of reduced analog ranges with 8-bit resolution. The ADC0844CCN is designed to operate from the control bus of a wide variety of microprocessors. TRI-STATE output latches that directly drive the data bus permit the A/D to be configured as memory locations or I/O devices to the microprocessor with no interface logic necessary.

Parametrics

ADC0844CCN absolute maximum ratings: (1)Supply Voltage (VCC): 6.5V; (2)Logic Control Inputs: -0.3V to +15V; (3)At Other Inputs and Outputs: -0.3V to VCC +0.3V; (4)Input Current at Any Pin: 5 mA; (5)Package Input Current: 20 mA; (6)Storage Temperature: -65℃ to +150℃; (7)Package Dissipation at TA = 25℃: 875 mW; (8)ESD Susceptibility: 800V; (9)Lead Temperature (Soldering, 10 seconds), Dual-In-Line Package (Plastic): 260℃; Dual-In-Line Package (Ceramic): 300℃; Molded Chip Carrier Package, Vapor Phase (60 seconds): 215℃; Infrared (15 seconds): 220℃.

Features

ADC0844CCN features: (1)Easy interface to all microprocessors; (2)Operates ratiometrically or with 5 VDC voltage reference; (3)No zero or full-scale adjust required; (4)4-channel or 8-channel multiplexer with address logic; (5)Internal clock; (6)0V to 5V input range with single 5V power supply; (7)0.3" standard width 20-pin or 24-pin DIP; (8)28 Pin Molded Chip Carrier Package.
