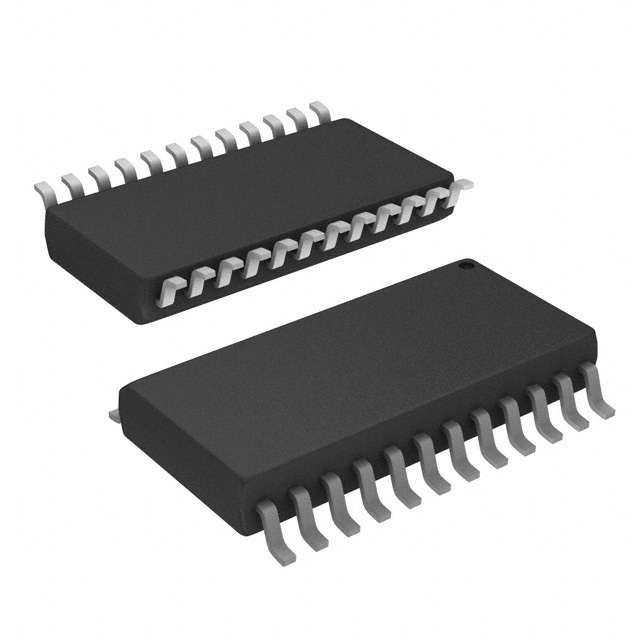

ADC10462CIWM

ADC10462CIWM, 10-Bit 600 ns A/D Converter, SOP, -0.3V to +6V, 20mA, 875mW, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: ADC10462CIWM

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:ADC10462CIWM
US $0.15 - 2.40
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

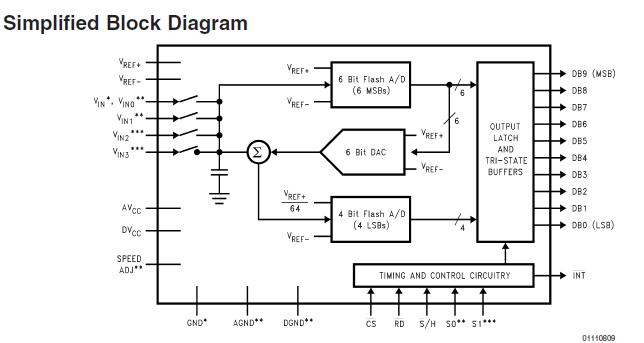

The ADC10462CIWM is a 10-Bit 600 ns A/D Converter with Input Multiplexer and Sample/Hold. Using an innovative, patented multistep conversion technique, the device offers sub-microsecond conversion times yet dissipate a maximum of only 235 mW. The ADC10462CIWM performs a 10-bit conversion in two lower-resolution “flashes”, thus yielding a fast A/D without the cost, power dissipation, and other problems associated with true flash approaches. The applications of the ADC10462CIWM include Digital signal processor front ends, Instrumentation, Disk drives, Mobile telecommunications.

Parametrics

ADC10462CIWM absolute maximum ratings: (1)Supply Voltage (V+ = AVCC = DVCC): -0.3V to +6V; (2)Voltage at Any Input or Output: -0.3V to V+ + 0.3V; (3)Input Current at Any Pin (Note 3): 5 mA; (4)Package Input Current (Note 3): 20 mA; (5)Power Consumption (Note 4): 875 mW; (6)ESD Susceptibility (Note 5): 2000V; (7)Soldering Information (Note 6), N Package (10 Sec): 260℃.

Features

ADC10462CIWM features: (1)Built-in sample-and-hold; (2)Single +5V supply; (3)1, 2, or 4-input multiplexer options; (4)No external clock required; (5)Speed adjust pin for faster conversions (ADC10462 and ADC10464).
