Product Summary
The ADF4116BRU is a RF PLL Frequency Synthesizer. The ADF4116BRU can be used to implement local oscillators in the upconversion and downconversion sections of wireless receivers and transmitters. The device consists of a low-noise digital PFD (Phase Frequency Detector), a precision charge pump, a programmable reference divider, programmable A and B counters and a dual-modulus prescaler (P/P+1). The A (6-bit) and B (13-bit) counters, in conjunction with the dual modulus prescaler (P/P+1), implement an N divider (N = BP + A). The applications of the ADF4116BRU include Base Stations for Wireless Radio (GSM, PCS, DCS, CDMA, WCDMA), Wireless Handsets (GSM, PCS, DCS, CDMA, WCDMA), Wireless LANS, Communications Test Equipment, CATV Equipment.
Parametrics
ADF4116BRU absolute maximum ratings: (1)AVDD to GND3: –0.3 V to +7 V; (2)AVDD to DVDD: -0.3 V to +0.3 V; (3)VP to GND: -0.3 V to +7 V; (4)VP to AVDD: -0.3 V to +5.5 V; (5)Digital I/O Voltage to GND: -0.3 V to VDD + 0.3 V; (6)Analog I/O Voltage to GND: -0.3 V to VP + 0.3 V; (7)REFIN, RFINA, RFINB to GND: -0.3 V to VDD + 0.3 V; (8)Operating Temperature Range; (9)Industrial (B Version): -40℃ to +85℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Maximum Junction Temperature: 150℃; (12)TSSOP θJA Thermal Impedance: 150.4℃/W; (13)CSP θJA Thermal Impedance (Paddle Soldered): 122℃/W.
Features
ADF4116BRU features: (1)2.7 V to 5.5 V Power Supply; (2)Separate VP Allows Extended Tuning Voltage in 3 V Systems; (3)Selected Charge Pump Currents; (4)Dual Modulus Prescaler, ADF4116: 8/9; (5)3-Wire Serial Interface; (6)Digital Lock Detect; (7)Power-Down Mode; (8)Fast Lock Mode.

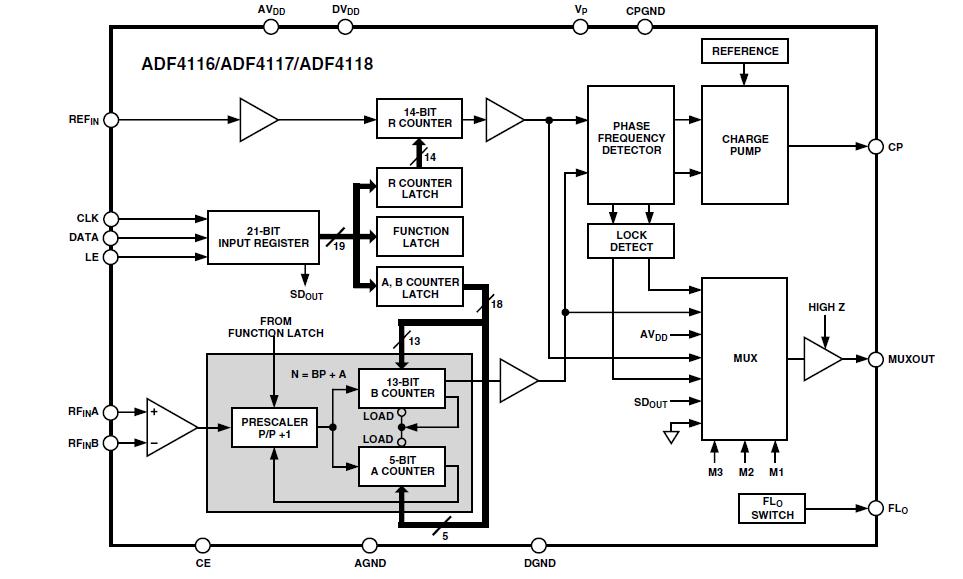

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ADF4116BRU |
IC SYNTH PLL RF 550MHZ 16-TSSOP |
Data Sheet |
|
|
||||||||||||||||||||
ADF4116BRU-REEL |
Analog Devices Inc |
IC PLL FREQ SYNTHESIZER 16-TSSOP |
Data Sheet |
|
|
|||||||||||||||||||
ADF4116BRUZ |
IC SYNTH PLL RF 550MHZ 16-TSSOP |
Data Sheet |
|
|
||||||||||||||||||||
ADF4116BRUZ-REEL |
IC PLL RF FREQ SYNTHESZR 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||||
ADF4116BRUZ-REEL7 |
IC PLL RF FREQ SYNTHESZR 16TSSOP |
Data Sheet |
|
|
||||||||||||||||||||
ADF4116BRU-REEL7 |
IC PLL FREQ SYNTHESIZER 16-TSSOP |
Data Sheet |
|
|
