ADIS16220CCCZ

digital vibration sensor that com- bines industry-leading iMEMS sensing technology, 5.3 V, 22 kHz, LGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: ADIS16220CCCZ

Brand:: Analog Devices - ADI | Pack: LGA | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:ADIS16220CCCZ
US $0.15 - 2.40
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

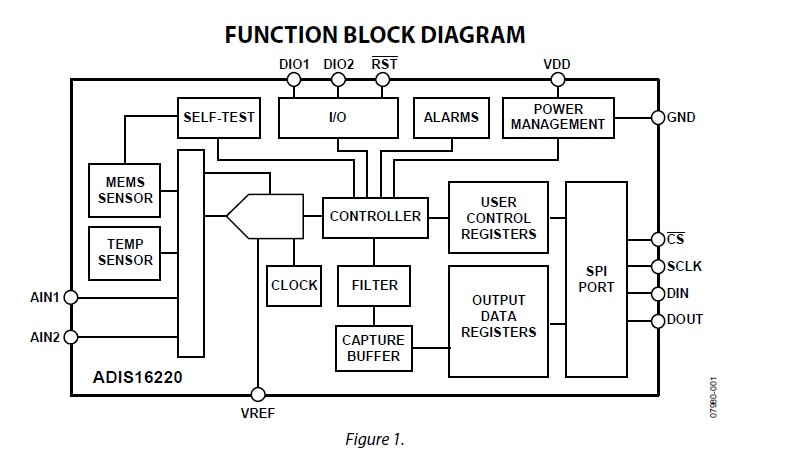

The ADIS16220CCCZ is a digital vibration sensor that com- bines industry-leading iMEMS sensing technology with signal processing, data capture, and a convenient serial peripheral interface (SPI). The SPI and data buffer structure provide convenient access to wide-bandwidth sensor data. The 22 kHz sensor resonance and 100.2 kSPS sample rate provide adequate response for most machine-health applications. The ADIS16220CCCZ averaging/ decimating filter provides optimization controls for lower bandwidth applications.

Parametrics

ADIS16220CCCZ absolute maximum ratings: (1)VDD to GND: －0.3 V to +6.0 V; (2)Digital Input Voltage to GND: －0.3 V to +5.3 V; (3)Digital Output Voltage to GND: －0.3 V to VDD + 0.3 V; (4)Analog Inputs to GND: －0.3 V to +3.6 V; (5)Operating Temperature Range: －40℃ to +125℃; (6)Storage Temperature Range: －65℃to +125℃.

Features

ADIS16220CCCZ features: (1)Digital temperature sensor output; (2)Digitally controlled sample rate; (3)Digitally controlled frequency response; (4)2 auxiliary digital I/Os Digitally activated self-test; (5)Digitally activated low power mode; (6)Serial number and device ID; (7)Single-supply operation: 3.15 V to 3.6 V; (8)Operating temperature range: －40℃to +125℃; (9)9.2 mm × 9.2 mm 16-terminal LGA.
