Product Summary

The ADM3202ARN is a transceiver. The ADM3202ARN is a high speed, 2-channel RS-232/V.28 interface device which operates from a single +3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ ADM1385) makes them ideal for battery powered portable instruments. The ADM3202ARN conforms to the EIA- 232E and CCITT V.28 specifications and operates at data rates up to 460 kbps. Four external 0.1 uF charge pump capacitors are used for the voltage doubler/inverter permitting operation from a single +3.3 V supply.

Parametrics

ADM3202ARN absolute maximum ratings: 1)VCC: －0.3 V to +6 V; (2)V+: (VCC － 0.3 V)to +14 V; (3)V－ : +0.3 V to －14 V; (4)Operating Temperature Range Industrial (A Version): －40℃ to +85℃; (5)Storage Temperature Range: －65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec): +300℃; (7)ESD Rating: <1500 V.

Features

ADM3202ARN features: (1)460 kbps Data Rate; (2)Specified at +3.3 V; (3)Meets EIA-232E Specifications; (4)0.1uF Charge Pump Capacitors; (5)Low Power Shutdown (ADM3222E and ADM1385); (6)DIP, SO, SOIC, SSOP and TSSOP Package Options; (7)Upgrade for MAX3222/32 and LTC1385.

Diagrams

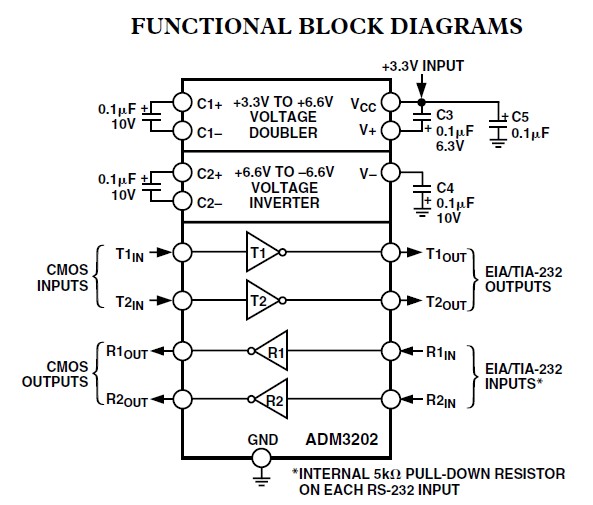

ADM3202ARN pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADM3202ARN
ADM3202ARN

IC TX/RX DUAL RS-232 3.3V 16SOIC
Data Sheet
0-144: $1.45
ADM3202ARN-REEL
ADM3202ARN-REEL

IC TXRX DUAL RS-232 3.3V 16SOIC
Data Sheet
0-2500: $0.94
ADM3202ARN-REEL7
ADM3202ARN-REEL7

IC TXRX DUAL RS-232 3.3V 16SOIC
Data Sheet
Negotiable
ADM3202ARNZ
ADM3202ARNZ

IC TX/RX DUAL RS-232 3.3V 16SOIC
Data Sheet
0-1: $1.72
1-10: $1.54
10-100: $1.26
100-250: $1.14
250-500: $1.02
500-1000: $0.86
1000-2500: $0.82
ADM3202ARNZ-REEL
ADM3202ARNZ-REEL

IC TXRX DUAL RS-232 3.3V 16SOIC
Data Sheet
0-2500: $0.82
ADM3202ARNZ-REEL7
ADM3202ARNZ-REEL7

IC TXRX DUAL RS232 3.3V 16SOIC
Data Sheet
0-1: $1.77
1-10: $1.59
10-25: $1.43
25-100: $1.30
100-250: $1.18
250-500: $1.05
