Product Summary
The ADM3222ARUZ is a transceiver. The ADM3222ARUZ is a high speed, 2-channel RS-232/V.28 interface device that operates from a single 3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ADM1385) make them ideal for battery-powered portable instruments. The The ADM3222ARUZ is parts conform to the EIA-232E and CCITT V.28 specifications and operate at data rates up to 460 kbps.
Parametrics
ADM3222ARUZ absolute maximum ratings: (1)VCC: －0.3 V to +6 V ; (2)V+: (VCC － 0.3 V)to +14 V ; (3)V－: +0.3 V to -14 V; (4)Operating Temperature Range Industrial (A Version): －40℃to +85℃; (5)Storage Temperature Range: －65℃to +150℃; (6)Lead Temperature (Soldering, 10 sec): JEDEC industry standard J-STD-020.
Features
ADM3222ARUZ features: (1)460 kbps data rate; (2)Specified at 3.3 V; (3)Meets EIA-232E specifications; (4)0.1 uF charge pump capacitors; (5)Low power shutdown (ADM3222 and ADM1385); (6)PDIP, SOIC_N, SOIC_W, SSOP, and TSSOP options; (7)Upgrade for MAX3222/MAX3232 and LTC1385; (8)ESD protection to IEC 1000-4-2 (801.2).

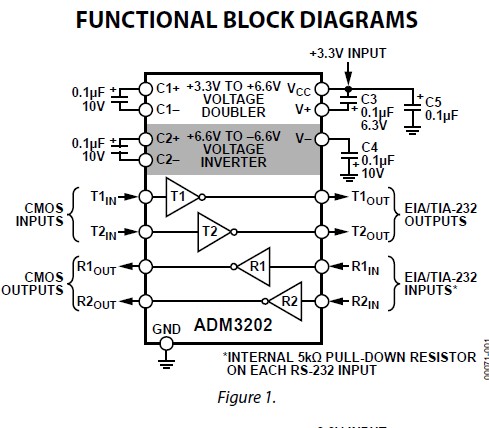

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM3222ARUZ |
|

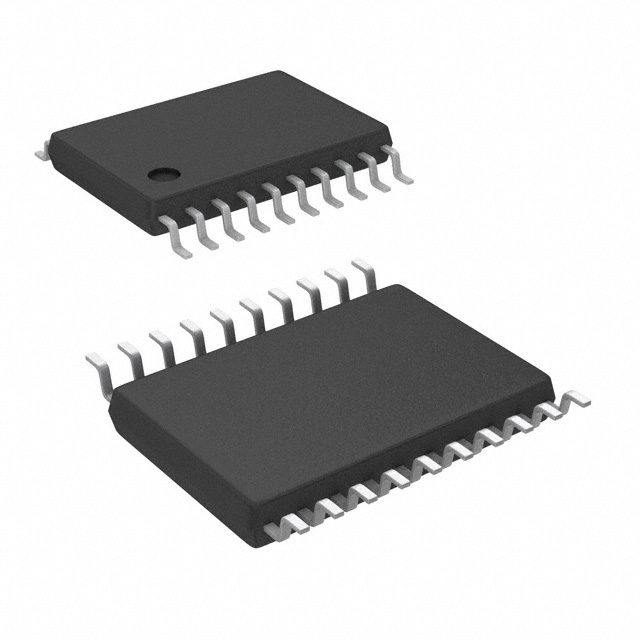

IC TX/RX RS232 3.3V W/SD 20TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADM3222ARUZ-REEL |
|
IC TXRX RS-232 3.3V W/SD 20TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADM3222ARUZ-REEL7 |
|
IC TXRX RS-232 3.3V W/SD 20TSSOP |
Data Sheet |
|
|
||||||||||||||||||
