Product Summary

The ADM3307EARUZ is a 2.7 to 3.6V serial port transceiver with green idle. Its applications include Mobile phone handsets/data cables, Laptop and notebook computers, Printers, Peripherals, Modems, PDAs/Hand-Held Devices/Palmtop Computers.

Parametrics

ADM3307EARUZ absolute maximum ratings: (1)input voltage: -0.3 to 6V; (2)output voltage: ±15V; (3)short-circuit duration: continuous; (4)VCC: -0.3 to 4V; (5)storage temperature range: -65 to 150℃; (6)ESD rating: ±8kV.

Features

ADM3307EARUZ features: (1)Green Idle power-saving mode; (2)Single 2.7 V to 3.6 V power supply; (3)Operates with 3 V logic; (4)0.1 µF to 1 µF charge pump capacitors; (5)Low EMI; ()Low power shutdown: 20 nA; (7)Full RS-232 compliance.

Diagrams

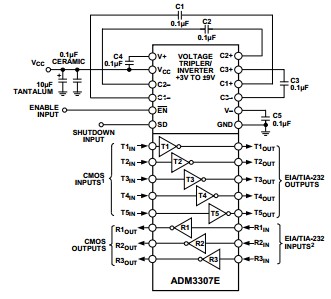

ADM3307EARUZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

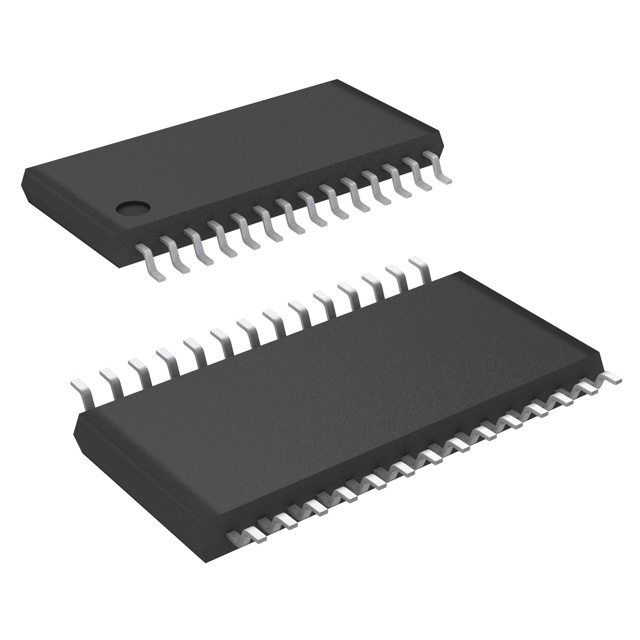

ADM3307EARUZ
ADM3307EARUZ

IC TXRX RS-232 5:3 2.7V 28TSSOP
Data Sheet
0-1: $2.12
1-10: $1.89
10-25: $1.70
25-100: $1.55
100-250: $1.40
250-500: $1.26
500-1000: $1.06
1000-2500: $1.01
ADM3307EARUZ-REEL
ADM3307EARUZ-REEL

IC TXRX RS-232 5:3 2.7V 28TSSOP
Data Sheet
0-2500: $1.01
ADM3307EARUZ-REEL7
ADM3307EARUZ-REEL7

IC TXRX RS-232 5:3 2.7V 28TSSOP
Data Sheet
0-1000: $1.06
