Product Summary

The ADM561JRZ is a four driver/five receiver interface device designed to meet the EIA-232 standard and operate with a single +3.3 V power supply. The ADM561JRZ features an on-board dc-to-dc converter, eliminating the need for dual ±5 V power supplies. This dc-to-dc converter contains a voltage doubler and voltage inverter, both of which internally generate ±6.6 V from the input +3.3 V power supply. The ADM561JRZ consume only 5 mW making them ideally suited for battery and other powerADM561JRZsensitive appli-cations. A shutdown facility is also provided to reduce the power to 0.66 uW.

Parametrics

ADM561JRZ absolute maximum ratings: (1)VCC: －0.3 V to +6 V; (2)V+: (VCC － 0.3 V)to +14 V; (3)V－: +0.3 V to －14 V; (4)Operating Temperature Range Commercial (J Version): 0℃to +70℃; (5)Storage Temperature Range: －65℃to +150℃.

Features

ADM561JRZ features: (1)RS-232 compatible; (2)Operates with 3 V or 5 V logic; (3)Ultralow power CMOS: 1.3 mA operation; (4)Low power shutdown: 0.2 uA; (5)Suitable for serial port mice; (6)116 kbps data rate; (7)1 uF charge pump capacitors; (8)Single +3 V to +3.6 V power supply; (9)Two receivers active in shutdown (ADM560).

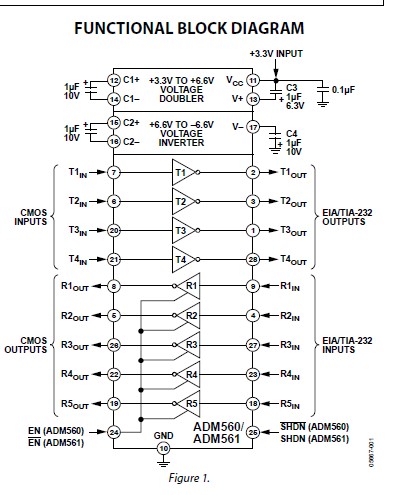

Diagrams

ADM561JRZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADM561JRZ
ADM561JRZ

IC TXRX RS232 4:5 3.3V LP 28SOIC
Data Sheet
0-1: $3.48
1-10: $3.11
10-100: $2.55
100-250: $2.30
250-500: $2.06
500-1000: $1.74
1000-2500: $1.66
ADM561JRZ-REEL
ADM561JRZ-REEL

IC TXRX RS232 4:5 3.3V LP 28SOIC
Data Sheet
0-1000: $1.74
