Product Summary
The ADM706ARZ is a microprocessor supervisory circuit. The ADM706ARZ is suitable for monitoring 5 V power supplies/batteries and can also monitor microprocessor activity. The ADM706ARZ provides power-supply monitoring circuitry that generate a reset output during power-up, power- down, and brownout conditions. The reset output remains operational with VCC as low as 1 V. Independent watchdog monitoring circuitry is also provided. This is activated if the watchdog input has not been toggled within 1.60 seconds.
Parametrics
ADM706ARZ absolute maximum ratings: (1)Digital Output Current: 20 mA; (2)Power Dissipation, N-8 PDIP: 727 mW; (3)VCC: －0.3 V to +6 V; (4)All Other Inputs: －0.3 V to VCC + 0.3 V; (5)Storage Temperature Range: －65℃to +150℃; (6)ESD Rating: >4.5 kV.
Features
ADM706ARZ features: (1)200 ms reset pulse width; (2)Debounced TTL/CMOS manual reset input (MR); (3)Independent watchdog timer (ADM705/ADM706); (4)1.60 sec timeout (ADM705/ADM706); (5)Active high reset output (ADM707/ADM708); (6)Voltage monitor for power-fail or low battery warning; (7)Superior upgrade for MAX705 to MAX708.

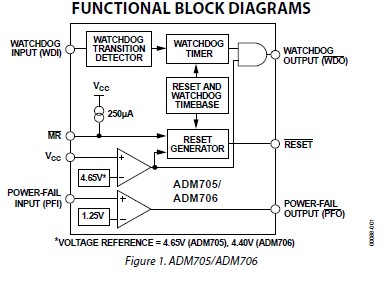

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM706ARZ |
|
IC SUPERVISOR MPU 4.4 WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADM706ARZ-REEL |
|
IC SUPERVISOR MPU 4.40V WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADM706ARZ-REEL7 |
|
IC SUPERVISOR MPU 4.40V WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
