Product Summary

The ADM707ARZ is a low cost μP supervisory circuit. The ADM707ARZ is suitable for monitoring the 5 V power supply/battery and can also monitor microprocessor activity. Two supply-voltage monitor levels are available. The ADM707ARZ generates a reset when the supply voltage falls below 4.65 V, while the ADM707ARZ require that the supply fall below 4.40 V before a reset is issued. All parts are available in 8-lead DIP and SOIC packages. The ADM707ARZ is also available in space-saving microSOIC packages.

Parametrics

ADM707ARZ absolute maximum ratings: (1)VCC: -0.3 V to +6 V; (2)All Other Inputs: -0.3 V to VCC + 0.3 V; (3)Input Current VCC: 20 mA, GND: 20 mA; (4)Digital Output Current: 20 mA; (5)Power Dissipation, N-8 DIP: 727 mW; (6)Operating Temperature Range; (7)Industrial (A Version): -40℃ to +85℃; (8)Lead Temperature (Soldering, 10 sec): 300℃; (9)Vapor Phase (60 sec): 215℃; (10)Infrared (15 sec): 220℃; (11)Storage Temperature Range: -65℃ to +150℃; (12)ESD Rating: 5 kV.

Features

ADM707ARZ features: (1)Guaranteed RESET Valid with VCC = 1 V; (2)190 μA Quiescent Current; (3)Precision Supply-Voltage Monitor; (4)200 ms Reset Pulsewidth; (5)Debounced TTL/CMOS Manual Reset Input (MR); (6)Independent Watchdog Timer—1.6 sec Timeout; (7)Active High Reset Output; (8)Voltage Monitor for Power-Fail or Low Battery Warning; (9)Superior Upgrade for MAX705–MAX708; (10)Also Available in MicroSOIC Packages.

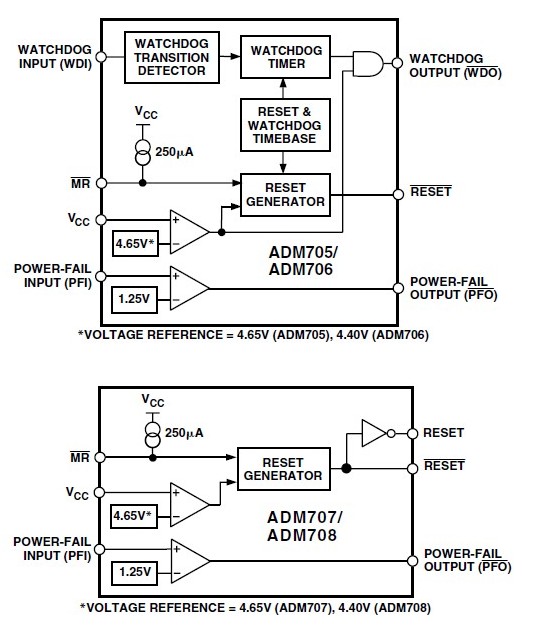

Diagrams

ADM707ARZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADM707ARZ
ADM707ARZ

IC SUPERVISOR MPU 4.65 WD 8SOIC
Data Sheet
0-1: $1.53
1-10: $1.36
10-100: $1.12
100-250: $1.01
250-500: $0.91
500-1000: $0.76
1000-2500: $0.73
ADM707ARZ-REEL
ADM707ARZ-REEL

IC SUPERVISOR MPU 4.65V WD 8SOIC
Data Sheet
0-2500: $0.73
