Product Summary

The AT45DB011B-SU is a 2.7-volt only dataflash. It is ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications.

Parametrics

AT45DB011B-SU absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage with respect to ground: -0.6 to 6.25V; (4)all output voltage with respect to ground: -0.6 to VCC+0.6V.

Features

AT45DB011B-SU features: (1)single 2.7 to 3.6V supply; (2)serial peripheral interface compatible; (3)20MHz max clock frequency; (4)supports page and block erase operations; (5)page program operation.

Diagrams

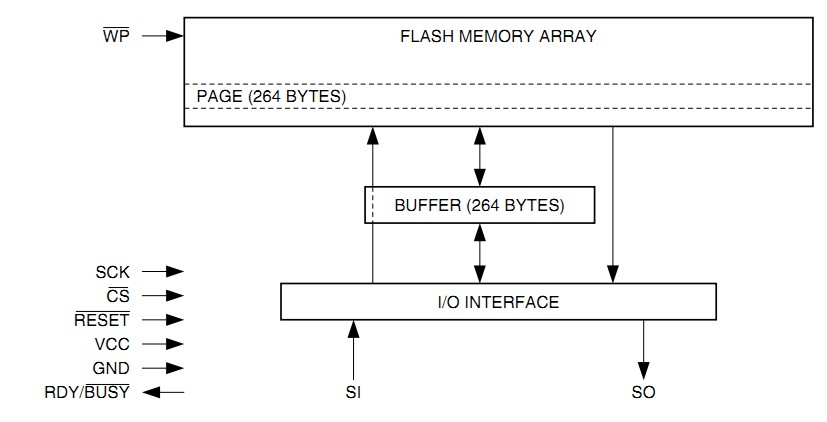

AT45DB011B-SU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AT45DB011B-SU
AT45DB011B-SU
Atmel
Flash 1M 8 I/O SPI 264B 2.7V
Data Sheet
Negotiable
