Product Summary

The AT45DB041D-SU-2.5 is a 2.5V or 2.7V dataflash. It is ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications.

Parametrics

AT45DB041D-SU-2.5 absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage: -0.6 to 6.25V; (4)All output voltage: -0.6 to VCC+0.6V.

Features

AT45DB041D-SU-2.5 features: (1)single 2.5V or 2.7V to 3.6V supply; (2)user configurable page size; (3)flexible erase options; (4)continuous read capability through entire array; (5)low-power dissipation; (6)hardware and software data protection features.

Diagrams

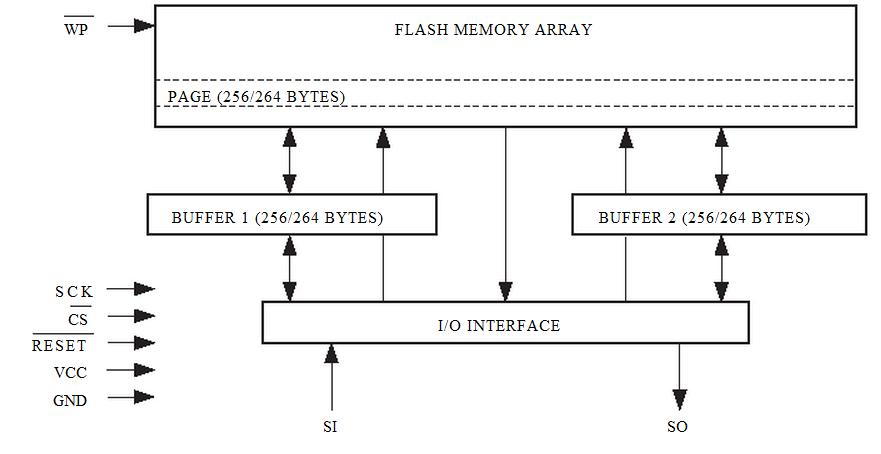

AT45DB041D-SU-2.5 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AT45DB041D-SU-2.5
AT45DB041D-SU-2.5
Atmel
Flash 4MB SERIAL 2.5V - IND TEMP
Data Sheet
0-1: $0.60
1-10: $0.58
10-25: $0.54
25-100: $0.51
