Product Summary

The AT45DB081D-SU is a 2.5V or 2.7V atmel dataflash. It ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications.

Parametrics

AT45DB081D-SU absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage: -0.6 to 6.25V; (4)All output voltage: -0.6 to VCC+0.6V.

Features

AT45DB081D-SU features: (1)single 2.5V or 2.7V to 3.6V supply; (2)user configurable page size; (3)page program operation; (4)flexible erase options; (5)two SRAM data buffers; (6)low-power dissipation.

Diagrams

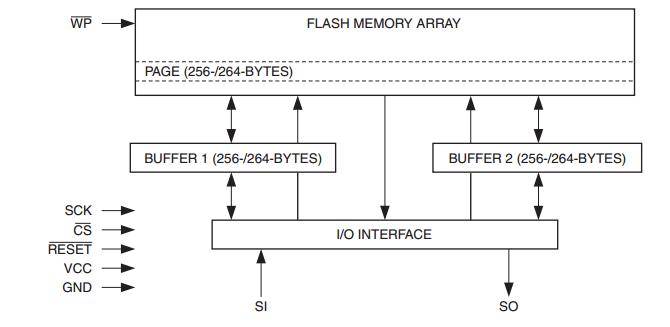

AT45DB081D-SU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AT45DB081D-SU
AT45DB081D-SU
Atmel
Flash 8MB Serial Ind. Temp
Data Sheet
0-1: $0.69
1-10: $0.67
10-25: $0.64
25-100: $0.60
AT45DB081D-SU-2.5
AT45DB081D-SU-2.5
Atmel
Flash 8MB SERIAL 2.5V - IND TEMP
Data Sheet
0-1: $0.74
1-10: $0.71
10-25: $0.67
25-100: $0.62
