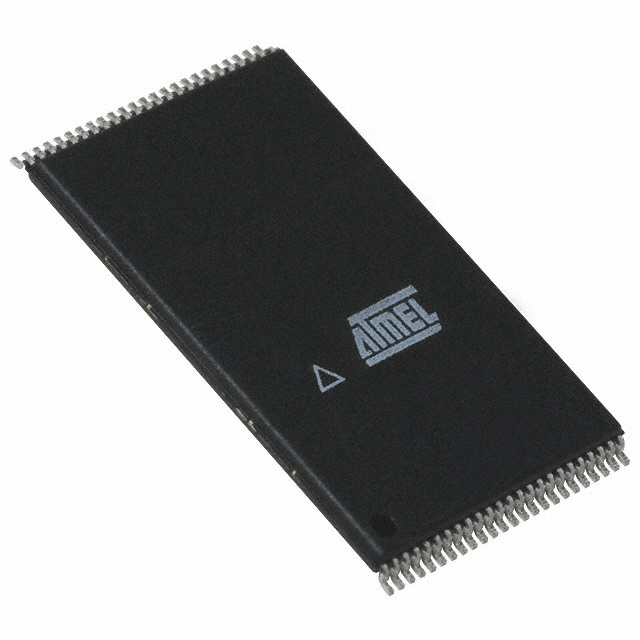

AT49F008AT-12TC

flash memory, 8MBIT, 120NS, 40TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: AT49F008AT-12TC

Brand:: ATMEL Corporation - ATMEL | Pack: TSSOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AT49F008AT-12TC
US $0.15 - 2.40
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT49F008AT-12TC is 5-volt, 8-megabit Flash memory organized as 1,048,576 words of 8 bits each or 512K words of 16 bits each. The AT49F008AT-12TC contains a user-enabled boot block protection feature. AT49F008AT-12TC locates it at highest order addresses (top boot) . To allow for simple in-system reprogrammability, the AT49F008AT-12TC to require high-input voltages for programming.

Parametrics

AT49F008AT-12TC absoluting maximum ratings: (1) Temperature under Bias: -55°C to +125°C ; (2) Storage Temperature: -65°C to +150°C ; (3) All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V ; (4) All Output Voltages with with Respect to Ground: -0.6V to Vcc+0.6V; (5) Voltage on RESET with Respect to Ground: -0.V to +13.5V .

Features

AT49F008AT-12TC features: (1) Single-voltage Operation: 5V Read, 5V Programming; (2) Fast Read Access Time -70ns; (3) Internal Erase/Program Control; (4) Sector Architecture: One 8K Word (16K Bytes) Boot Block with Programming Lockout, One 496K Word (992K Bytes) Main Memory Array Block; (5) Fast Sector Erase Time - 10 seconds; (6) Byte-by-byte or Word-by-word Programming -10μS Typical; (7) Hardware Data Protection; (8) Data Polling for End of Program Detection; (9) Low Power Dissipation -50 mA Active Current, 100μA CMOS Standby Current; (10) Typical 10,000 Write Cycles.
