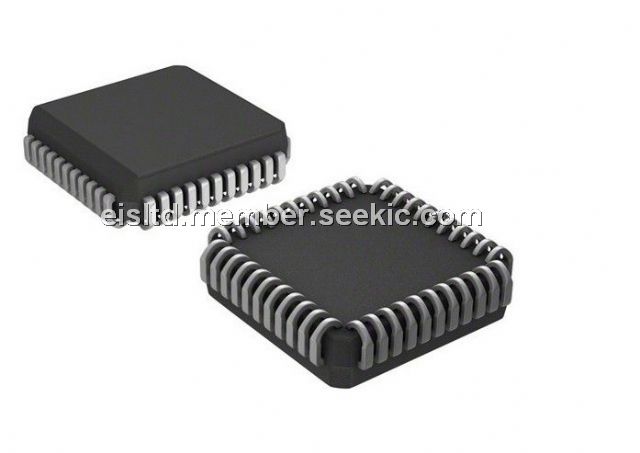

AT89C51RD2-SLSIM

AT89C51RD2-SLSIM, 8-bit Flash Microcontroller, PLCC-44, 6.5V, 15mA, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~5.00

PartNumber:: AT89C51RD2-SLSIM

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-29

From Other Seller

Part Number:AT89C51RD2-SLSIM
US $4.00 - 5.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT89C51RD2-SLSIM is a high performance CMOS Flash version of the 80C51 CMOS single chip 8-bit microcontroller. It contains a 64-Kbyte Flash memory block for code and for data. The AT89C51RD2-SLSIM retains all of the features of the Atmel 80C52 with 256 bytes of internal RAM, a 9-source 4-level interrupt controller and three timer/counters. In addition, the AT89C51RD2-SLSIM has a Programmable Counter Array, an XRAM of 1792 bytes, a Hardware Watchdog Timer, SPI interface, Keyboard, a more versatile serial channel that facilitates multiprocessor communication (EUART) and a speed improvement mechanism(X2 Mode).

Parametrics

AT89C51RD2-SLSIM absolute maximum ratings: (1)I = industrial: -40℃ to 85℃; (2)Storage Temperature: -65℃ to + 150℃; (3)Voltage on VCC to VSS: -0.5V to + 6.5V; (4)VVoltage on Any Pin to VSS: -0.5V to VCC + 0.5V; (5)Power Dissipation: 1 W.

Features

AT89C51RD2-SLSIM features: (1)Integrated Power Monitor (POR/PFD) to Supervise Internal Power Supply; (2)ISP (In-System Programming) Using Standard VCC Power Supply; (3)2048 Bytes Boot ROM Contains Low Level Flash Programming Routines and a Default Serial Loader; (4)High-speed Architecture; (5)100K Write Cycles; (6)Dual Data Pointer; (7)Variable Length MOVX for Slow RAM/Peripherals; (8)Improved X2 Mode with Independent Selection for CPU and Each Peripheral; (9)Keyboard Interrupt Interface on Port 1; (10)SPI Interface (Master/Slave Mode); (11)8-bit Clock Prescaler.
