Product Summary
The BTS3408G is a dual channel Low-Side Switch with D-MOS output stages for driving resistive, capacitive and inductive loads. The design is based on Infineons Smart Power Technology (SPT) which allows bipolar, CMOS and power D-MOS devices on the same monolithic circuit. The applications of the BTS3408G include All kinds of resistive, inductive and capacitive loads in switching applications, μC compatible power switch for 12 V, 24 V and 42 V applications, Replaces electromechanical relays and discrete circuits and Line, stepper motor, lamp and relay driver.
Parametrics
BTS3408G absolute maximum ratings: (1)Supply Voltage: +4.5 to +60 V; (2)Drain source voltage (OUT1, OUT2): -0.3 to +60 V; (3)Input voltage (IN1, IN2, ENA): -0.3 to +7 V; (4)Continuous input current VIN>7V: 1 mA; (5)FAULT output voltage: -0.3 to +7 V; (6)Operating temperature range: -40 to +150 ℃; (7)Storage temperature range: -55 to +150 ℃; (8)Power dissipation (DC): 0.88 W.
Features
BTS3408G features: (1)Logic Level Input; (2)Compatible to 3V micro controllers; (3)ESD protection; (4)Thermal shutdown with auto restart; (5)Overload protection; (6)Short circuit protection; (7)Over voltage protection; (8)Open load detection (during Off); (9)Current limitation; (10)Direct parallel control of the inputs; (11)FREEZE functionality for multiplexing; (12)General fault flag.

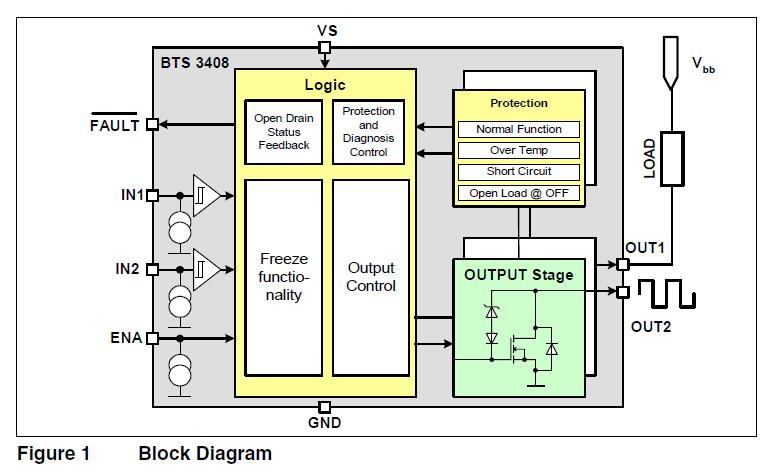

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BTS3408G |
![]() Infineon Technologies |
![]() Power Switch ICs - Power Distribution SMART LW SIDE PWR |
![]() Data Sheet |
![]()
|
|
||||||||||||
