CS5173EDR8G

boost regulator,1.5 A, 560 kHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: CS5173EDR8G

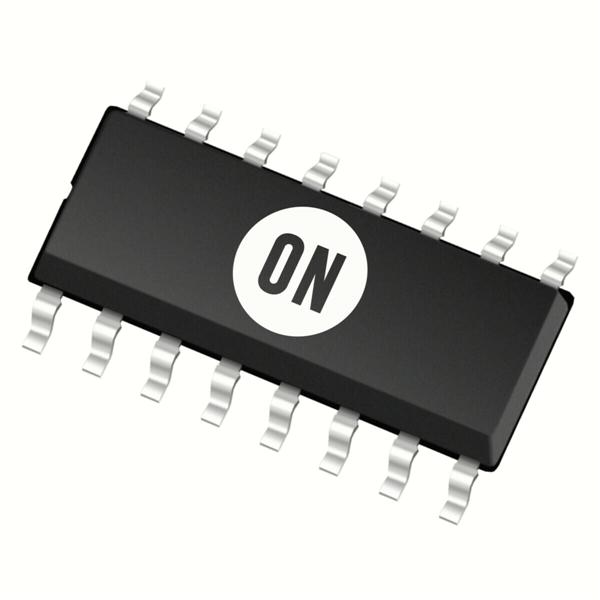

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:CS5173EDR8G
US $0.15 - 2.40
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

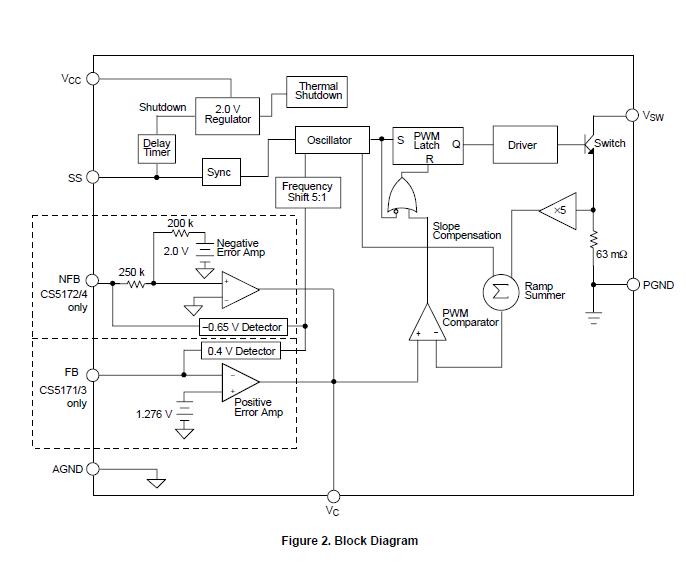

CS5173EDR8G is a 1.5A, 560 kHz switching regulator with a high efficiency. The CS5173EDR8G operates over a wide input voltage range, from 2.7V to 30V. The flexibility of the design of the Boost Regulator allows the chips to operate in most power supply configurations, including boost, flyback, forward, inverting and SEPIC. The CS5173EDR8G utilizes current mode architecture, which allows excellent load and line regulation, as well as a practical means for limiting current. Combining high frequency operation with a highly integrated regulator circuit results in an extremely compact power supply solution. The CS5173EDR8G circuit design includes provisions for features such as frequency synchronization, shutdown, and feedback controls for either positive or negative voltage regulation.

Parametrics

CS5173EDR8G absoluting maximum ratings: (1) Junction Temperature Range: 40°C to +150°C; (2) Storage Temperature Range, TSTORAGE: 65°C to150°C; (3) Lead Temperature Soldering: Reflow (Note 1) : 230°C Peak; (4) ESD, Human Body Model: 1.2kV. Note: Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected. 1. 60 second maximum above 183°C.

Features

CS5173EDR8G features: (1) Pb-Free Packages are Available; (2) Integrated Power Switch: 1.5A Guaranteed; (3) Wide Input Range: 2.7V to 30V; (4) High Frequency Allows for Small Components; (5) Minimum External Components; (6) Easy External Synchronization; (7) Built in Overcurrent Protection; (8) Frequency Foldback Reduces Component Stress During an Overcurrent Condition; (9) Thermal Shutdown with Hysteresis; (10) Regulates Either Positive or Negative Output Voltages; (11) Shut Down Current: 50μA Maximum; (12) Wide Temperature Range: Industrial Grade: 40°C to 125°C, Commercial Grade: 0°C to 125°C.
