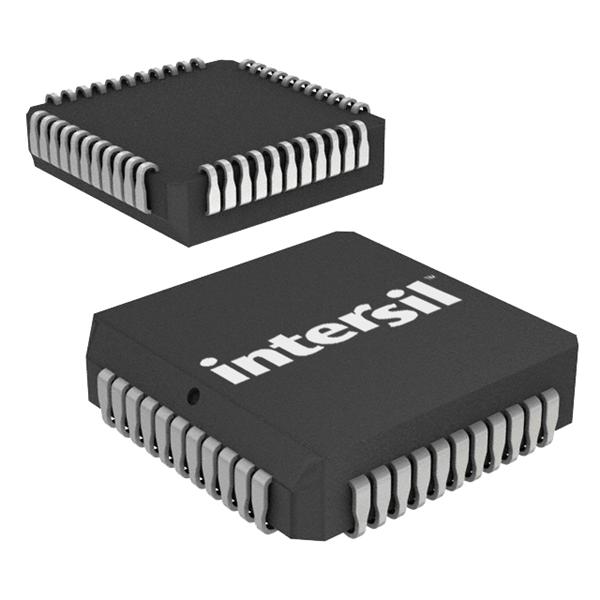

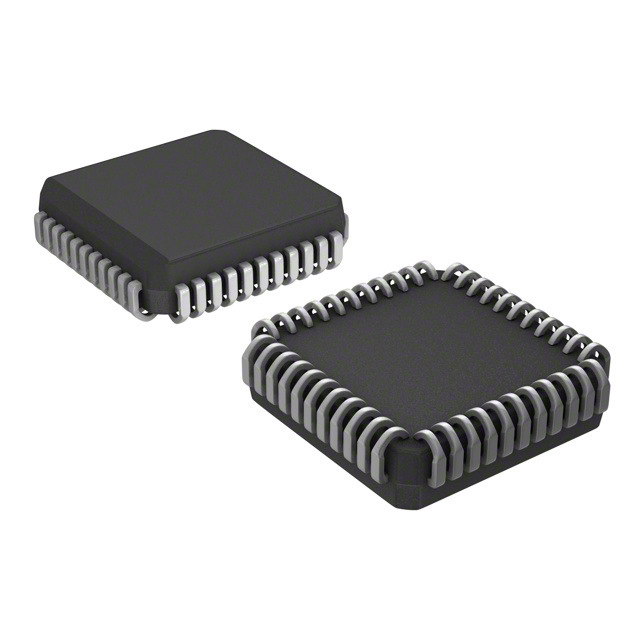

CS82C55A

Programmable Peripheral Interface, PLCC-44, +8.0V, 10μA, CS82C55A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: CS82C55A

Brand:: STMicroelectronics - ST | Pack: PLCC | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:CS82C55A
US $0.15 - 2.40
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

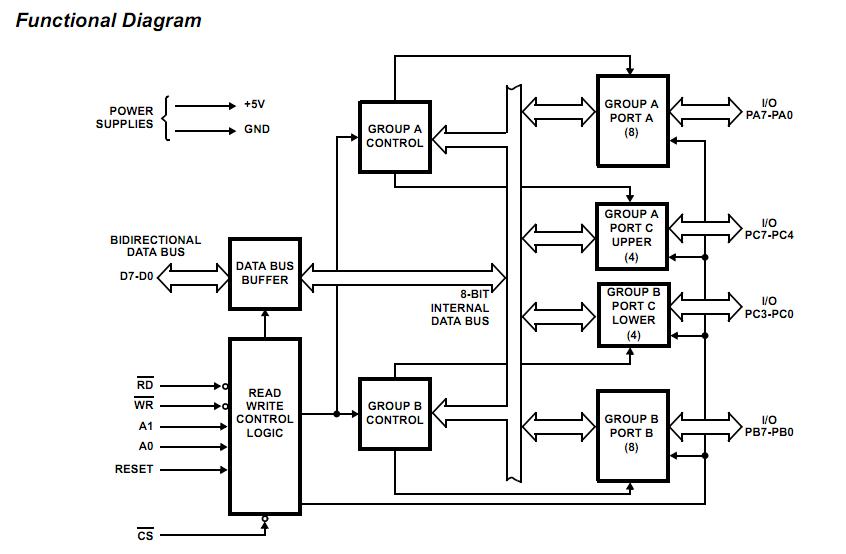

The CS82C55A is a CMOS Programmable Peripheral Interface and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The CMOS Programmable Peripheral Interface is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation. The high performance and industry standard configuration of the CS82C55A make it compatible with the 80C86, 80C88 and other microprocessors.

Parametrics

CS82C55A absolute maximum ratings: (1)Supply Voltage: +8.0V; (2)Input, Output or I/O Voltage: GND-0.5V to VCC+0.5V; (3)ESD Classification: Class 1; (4)Voltage Range: +4.5V to 5.5V; (5)Operating Temperature Range: 0 to 70℃.

Features

CS82C55A features: (1)Pb-Free Plus Anneal Available (RoHS Compliant) ; (2)Pin Compatible with NMOS 8255A; (3)24 Programmable I/O Pins; (4)Fully TTL Compatible; (5)High Speed, No Wait State Operation with 5MHz and 8MHz 80C86 and 80C88; (6)Direct Bit Set/Reset Capability; (7)Enhanced Control Word Read Capability; (8)L7 Process; (9)2.5mA Drive Capability on All I/O Ports; (10)Low Standby Power (ICCSB): 10μA.
