Product Summary
The ICE2AS01G is a stand alone controller. The ICE2AS01G provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and provide a stable output voltage in this mode. The frequency reduction of the ICE2AS01G is limited to 20kHz / 21.5 kHz (typ.) to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation the dimension of the transformer and the secondary diode can be lower which leads to more cost efficiency.
Parametrics
ICE2AS01G absolute maximum ratings: (1)VCC Supply Voltage VCC: -0.3 to 22 V; (2)FB Voltage VFB: -0.3 to 6.5 V; (3)SoftS Voltage VSoftS: -0.3 to 6.5 V; (4)ISense ISense: -0.3 to 3 V; (5)Junction Temperature Tj: -40 to 150 ℃; (6)Storage Temperature TS: -50 to 150 ℃; (7)Supply Current with Inactive Gate IVCC: 5.3 to 7 mA; (8)Oscillator Frequency fOSC: 93 to 107 kHz.
Features
ICE2AS01G features: (1)Only few external Components required; (2)Input Undervoltage Lockout; (3)67kHz/100kHz fixed Switching Frequency; (4)Max Duty Cycle 72%; (5)Latched Thermal Shut Down; (6)Overload and Open Loop Protection; (7)Overvoltage Protection during Auto Restart; (8)Adjustable Peak Current Limitation via External Resistor; (9)Overall Tolerance of Current Limiting < ±5%; (10)Internal Leading Edge Blanking; (11)Soft Start; (12)Soft gate driving for Low EMI.

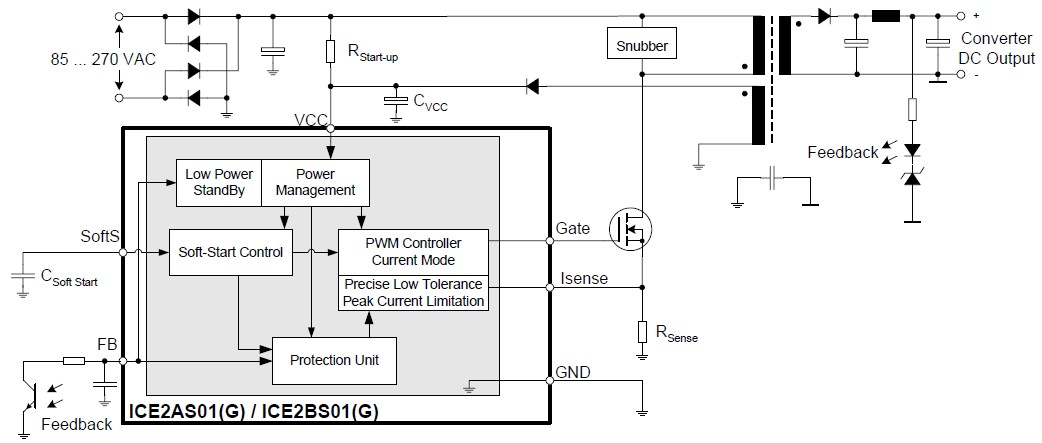

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() ICE2AS01G |
![]() Infineon Technologies |
![]() Primary & Secondary Side PWM Controllers SMPS ICS |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() ICE2AS01GXT |
![]() Infineon Technologies |
![]() Primary & Secondary Side PWM Controllers CTRLR SMP SUPPLIES LOW POWER PFC 27V |
![]() Data Sheet |
![]() Negotiable |
|
