Product Summary
The IRF3703PBF is a SMPS MOSFET. The applications of the IRF3703PBF include Synchronous Rectification, Active ORing, Active ORing.
Parametrics
IRF3703PBF absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 210A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 100 A; (3)Pulsed Drain Current, IDM: 1000A; (4)PD @TC = 25℃ Power Dissipation: 230 W; (5)PD @TA = 25℃ Power Dissipation: 3.8W; (6)Linear Derating Factor: 1.5 W/℃; (7)Gate-to-Source Voltage, VGS: ±20 V; (8)Peak Diode Recovery dv/dt, dv/dt: 5.0 V/ns; (9)Junction and Storage Temperature Range, TJ, TSTG: -55 to + 175℃.
Features
IRF3703PBF features: (1)Ultra Low On-Resistance; (2)Low Gate Impedance to Reduce Switching Losses; (3)Fully Avalanche Rated.

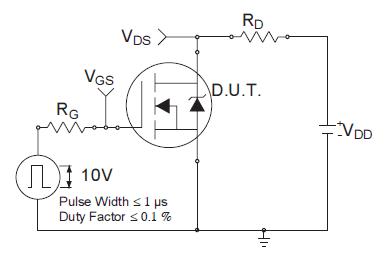

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRF3703PBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
||||||||||||
