Product Summary

The IRF830APBF is a HEXFET Power MOSFET. The applications of the IRF830APBF include Switch Mode Power Supply (SMPS), Uninterruptable Power Supply, High speed power switching, Lead-Free.

Parametrics

IRF830APBF absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 5.0 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 3.2 A; (3)Pulsed Drain Current, IDM: 20 A; (4)PD @TC = 25℃ Power Dissipation: 74 W; (5)Linear Derating Factor: 1.0 W/℃; (6)Gate-to-Source Voltage, VGS: ±30 V; (7)Peak Diode Recovery dv/dt, dv/dt: 5.3 V/ns; (8)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to + 150℃; (9)Soldering Temperature, for 10 seconds: 300 (1.6mm from case)℃; (10)Mounting torqe, 6-32 or M3 screw: 10 lbf·in (1.1N·m).

Features

IRF830APBF features: (1)Low Gate Charge Qg results in Simple Drive Requirement; (2)Improved Gate, Avalanche and dynamic dv/dt Ruggedness; (3)Fully Characterized Capacitance and Avalanche Voltage and Current; (4)Effective Coss Specified (See AN1001).

Diagrams

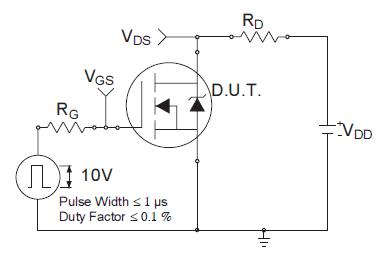

IRF830PBF circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF830APBF
IRF830APBF
Vishay/Siliconix
MOSFET N-Chan 500V 5.0 Amp
Data Sheet
0-1: $0.76
1-10: $0.60
10-100: $0.52
100-250: $0.46
